55003-101004
CONN HEADER HIGH SPEED 36POS PCBManufacturer: Amphenol ICC (FCI)
Categories: Specialized
Quality Control: Learn More
Amphenol ICC (FCI) Metral® 4000 Series 36-position high-speed header, part number 55003-101004. This through-hole mounted connector features male pins with a 0.079" (2.00mm) pitch. The natural colored housing contains 5 rows and 6 columns, accommodating all 36 positions. It offers a shielded design for robust signal integrity. The contact finish is gold with a thickness of 30.0µin (0.76µm), configured with a typical layout of 30 signal contacts and 6 ground contacts. This component is suitable for demanding applications in telecommunications, data storage, and industrial automation where high-speed data transfer and reliable connectivity are critical. Supplied in tube packaging.
Additional Information
Series: Metral® 4000RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:&mpn=55003-101004&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Shielded |
| Packaging | Tube |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Color | Natural |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | High Speed |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 30 Signal, 6 Ground |
| Number of Columns | 6 |
Request a Quote
Clients Also Buy
52057-102
CONN RCPT HIGH SPEED 36P EDGE MT

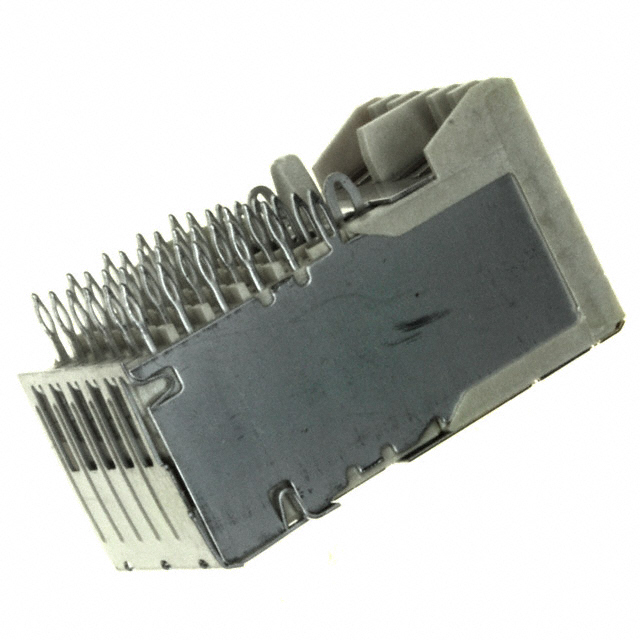

52057-502LF
