51940-117
CONN RCPT BLADE PWR 32POS PCBManufacturer: Amphenol ICC (FCI)
Categories: Specialized
Quality Control: Learn More

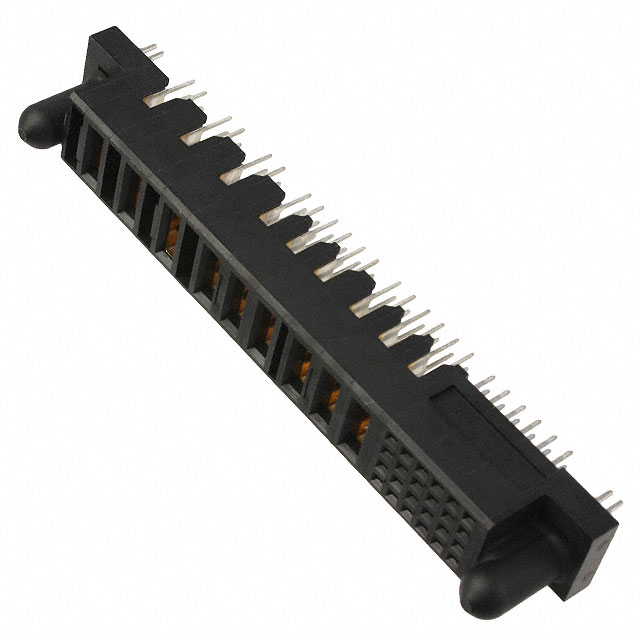

Amphenol ICC (FCI) 51940-117 is a 32-position PwrBlade® series receptacle connector for PCB mounting. This through-hole component features female sockets with a 0.100" (2.54mm) pitch and a 4-row configuration. The black housing ensures proper polarization and alignment, with a guide pin facilitating mating. Contact finish options include Gold or Gold, GXT™ with a 30.0µin (0.76µm) thickness for enhanced conductivity and durability. The contact layout typically supports 24 signal and 9 power contacts, designed for high-current applications. This connector is commonly utilized in power distribution systems, server and storage solutions, and telecommunications infrastructure. Supplied in tray packaging, the 51940-117 offers a robust solution for demanding power and signal connectivity requirements.
Additional Information
Series: PwrBlade®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:&mpn=51940-117&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Guide Pin |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold or Gold, GXT™ |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 32 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Blade Power |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 24 Signal, 9 Power |
| Number of Columns | - |
