51915-050
CONN RCPT BLADE PWR 29P EDGE MNTManufacturer: Amphenol ICC (FCI)
Categories: Specialized
Quality Control: Learn More

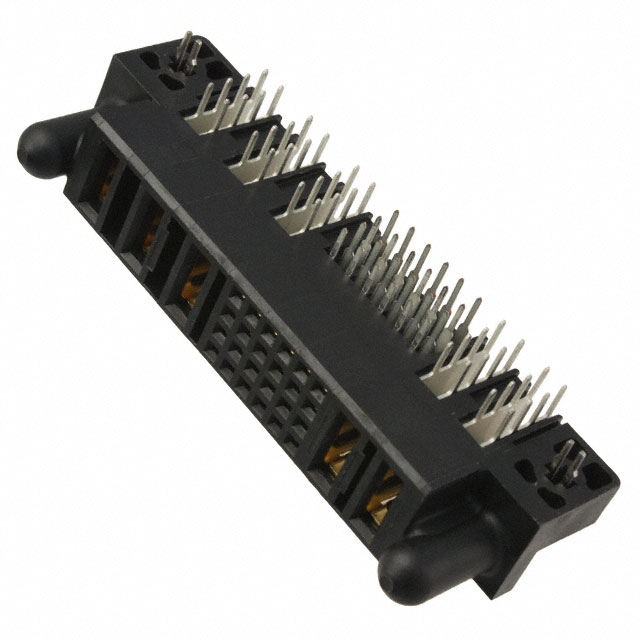

Amphenol ICC (FCI) PwrBlade® 51915-050 is a 29-position, right-angle, board-edge receptacle designed for high-power applications. This component features a black, blade power connector style with female sockets and blade sockets. The contact layout typically includes 24 signal contacts and 5 power contacts, with a pitch of 0.100" (2.54mm). Gold or GXT™ contact finish with a thickness of 30.0µin (0.76µm) ensures reliable conductivity. Key features include board lock and guide pins for robust mechanical integrity during mating. The termination method is solder, and the mounting type is through hole. This component is commonly utilized in power supply, server, and storage systems. It is supplied in tray packaging.
Additional Information
Series: PwrBlade®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:&mpn=51915-050&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Board Lock, Guide Pin |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets and Blade Sockets |
| Contact Finish | Gold or Gold, GXT™ |
| Color | Black |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 29 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Blade Power |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 24 Signal, 5 Power |
| Number of Columns | - |
