10113949-L0E-20DLF
CONN HEADER XCEDE PCBManufacturer: Amphenol ICC (FCI)
Categories: Specialized
Quality Control: Learn More

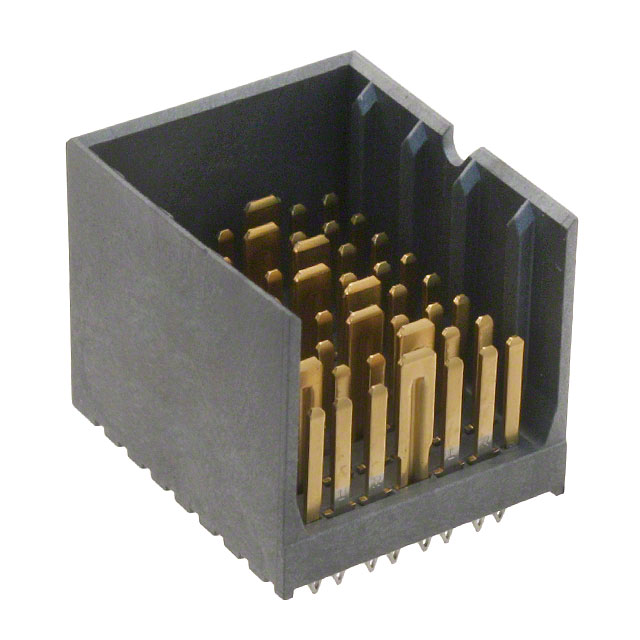

Connector Header, Male Pins and Blades Through Hole XCede®, Left Wall
Additional Information
Series: XCede®RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:&mpn=10113949-L0E-20DLF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold or Gold, GXT™ |
| Color | - |
| Mounting Type | Through Hole |
| Number of Positions | - |
| Pitch | - |
| Number of Rows | - |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | XCede®, Left Wall |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 16 Signal Pairs, 20 Ground |
| Number of Columns | 8 |
Request a Quote
