10113947-L0C-20DLF
CONN HEADER XCEDE PCBManufacturer: Amphenol ICC (FCI)
Categories: Specialized
Quality Control: Learn More

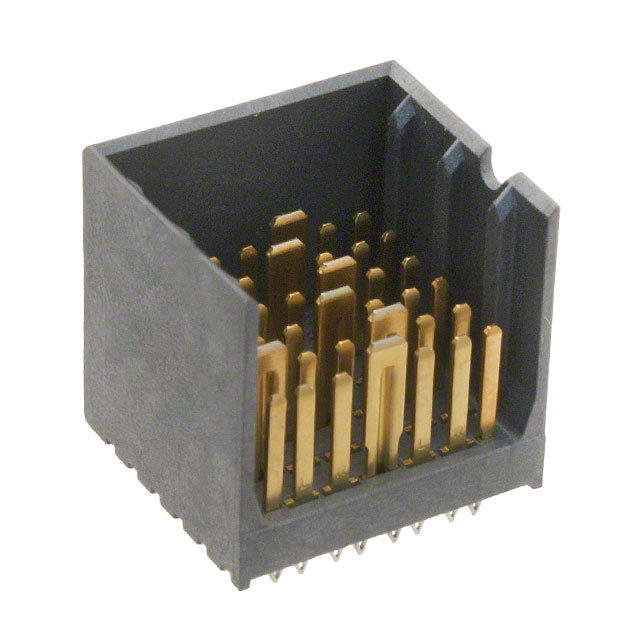

Amphenol ICC (FCI) XCede® 10113947-L0C-20DLF is a high-performance connector header designed for demanding backplane applications. This through-hole mounted component features male pins and blades with a left wall connector style, ensuring robust mechanical and electrical connectivity. The contact finish is Gold or Gold, GXT™ with a thickness of 30.0µin (0.76µm), providing excellent conductivity and corrosion resistance. The typical contact layout includes 12 signal pairs and 15 ground contacts, supporting high-density signaling. With 6 columns and all positions loaded, this header is engineered for high-speed data transmission and signal integrity in sectors such as telecommunications, networking, and high-performance computing. The termination method is press-fit, facilitating efficient assembly and reliable connections.
Additional Information
Series: XCede®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:&mpn=10113947-L0C-20DLF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold or Gold, GXT™ |
| Color | - |
| Mounting Type | Through Hole |
| Number of Positions | - |
| Pitch | - |
| Number of Rows | - |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | XCede®, Left Wall |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 12 Signal Pairs, 15 Ground |
| Number of Columns | 6 |
