10104999-M0E-20DLF
CONN HEADER XCEDE PCBManufacturer: Amphenol ICC (FCI)
Categories: Specialized
Quality Control: Learn More

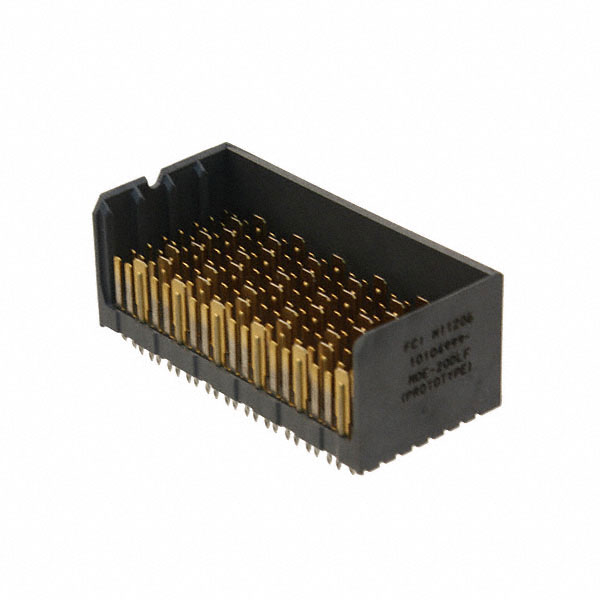

Amphenol ICC (FCI) XCede® series connector header, part number 10104999-M0E-20DLF. This right-angle, through-hole mounted header features male pins and blades designed for backplane applications. It offers a substantial 48 signal pairs and 52 ground contacts, providing high-density connectivity. The contact finish is a durable 30.0µin (0.76µm) Gold or GXT™ for reliable performance. With 8 columns and all positions loaded, this header is engineered for demanding applications commonly found in telecommunications and data communications infrastructure. The termination method is press-fit, ensuring robust mechanical and electrical connection.
Additional Information
Series: XCede®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:&mpn=10104999-M0E-20DLF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold or Gold, GXT™ |
| Color | - |
| Mounting Type | Through Hole |
| Number of Positions | - |
| Pitch | - |
| Number of Rows | - |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | XCede®, Right Wall |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 48 Signal Pairs, 52 Ground |
| Number of Columns | 8 |
