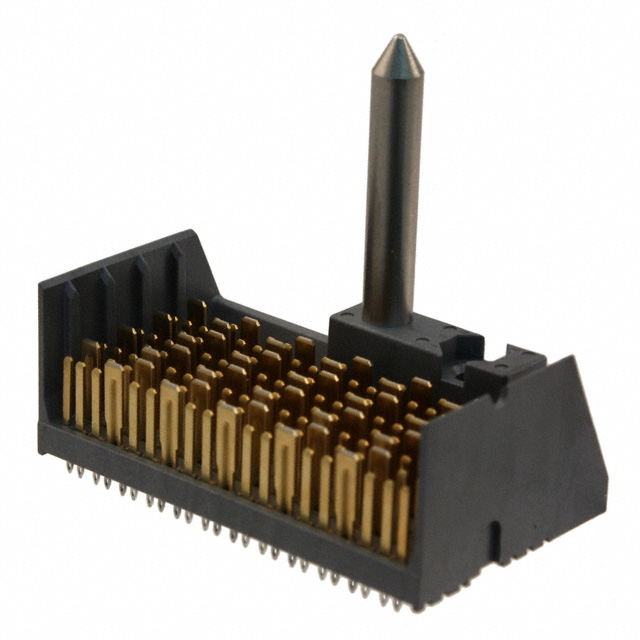

10104999-J0E-20DLF
CONN HEADER XCEDE PCBManufacturer: Amphenol ICC (FCI)
Categories: Specialized
Quality Control: Learn More
Amphenol ICC (FCI) XCede® 10104999-J0E-20DLF is a high-density, high-performance connector header designed for demanding backplane applications. This through-hole mounted component features male pins and blades with a "Guide Left" configuration, facilitating precise mating in complex systems. The header supports 48 signal pairs and 52 ground contacts, ensuring robust signal integrity and power delivery. Keyed features enhance proper alignment and prevent misinsertion. The contact finish is gold or GXT™ with a thickness of 30.0µin (0.76µm), providing excellent conductivity and corrosion resistance. This connector is commonly employed in telecommunications, enterprise networking, and high-performance computing infrastructure. It is supplied in tray packaging.
Additional Information
Series: XCede®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:&mpn=10104999-J0E-20DLF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Key |
| Packaging | Tray |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold or Gold, GXT™ |
| Color | - |
| Mounting Type | Through Hole |
| Number of Positions | - |
| Pitch | - |
| Number of Rows | - |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | XCede®, Guide Left |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 48 Signal Pairs, 52 Ground |
| Number of Columns | 8 |
