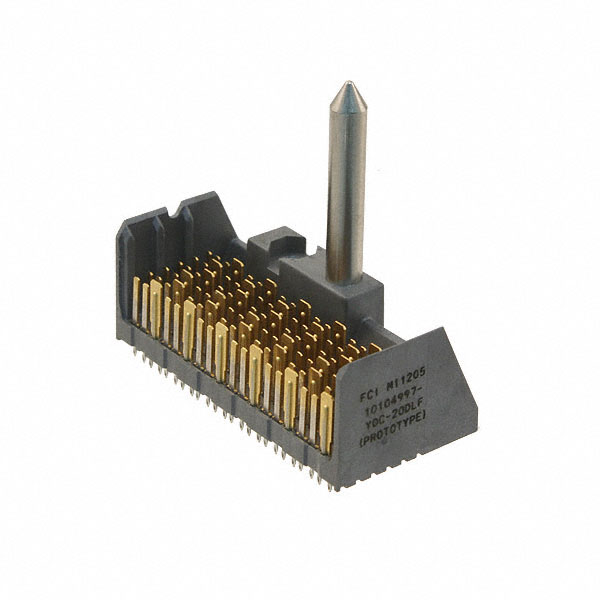

10104997-Y0C-20DLF
CONN HEADER XCEDE PCBManufacturer: Amphenol ICC (FCI)
Categories: Specialized
Quality Control: Learn More
Amphenol ICC (FCI) XCede® 10104997-Y0C-20DLF is a high-performance connector header designed for demanding backplane applications. This through-hole mounted component features male pins and blades with a 'Guide Right' configuration, ensuring robust and reliable mating. The XCede® series connector offers a substantial contact density, typically supporting 36 signal pairs and 39 ground contacts. Keying features are incorporated for proper orientation. Termination is achieved via a press-fit method. The contact finish is gold or GXT™ with a thickness of 30.0µin (0.76µm), providing excellent conductivity and durability. This component is widely utilized in telecommunications, data networking, and high-speed computing infrastructure. It is supplied in tray packaging.
Additional Information
Series: XCede®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:&mpn=10104997-Y0C-20DLF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Key |
| Packaging | Tray |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold or Gold, GXT™ |
| Color | - |
| Mounting Type | Through Hole |
| Number of Positions | - |
| Pitch | - |
| Number of Rows | - |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | XCede®, Guide Right |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 36 Signal Pairs, 39 Ground |
| Number of Columns | 6 |
