10091767-J0C-20DLF
CONN HEADER XCEDE PCBManufacturer: Amphenol ICC (FCI)
Categories: Specialized
Quality Control: Learn More

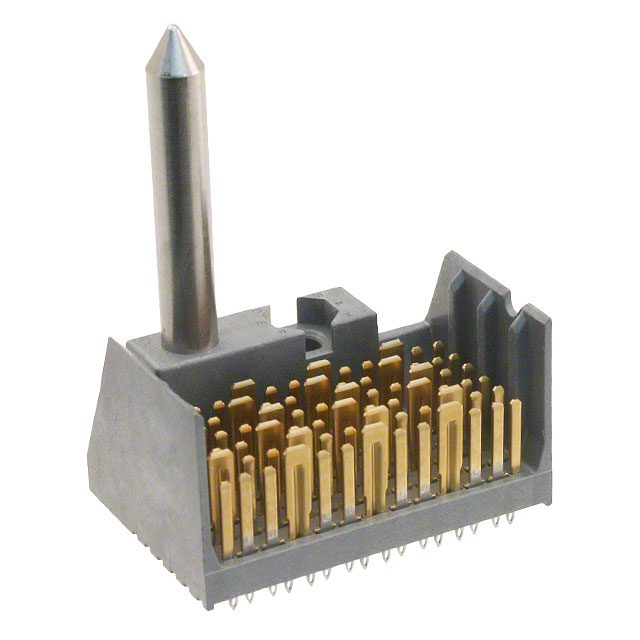

Amphenol ICC (FCI) XCede® connector header 10091767-J0C-20DLF is a male pin and blade type designed for through-hole mounting. This backplane connector features the XCede® series with a left guide for precise alignment. It offers a 30.0µin (0.76µm) gold or GXT™ contact finish for superior conductivity and durability. The typical contact layout includes 24 signal pairs and 27 ground contacts. This header is characterized by its keying feature for correct mating. It is supplied in tray packaging. This component is well-suited for demanding applications in data communications and high-performance computing.
Additional Information
Series: XCede®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:&mpn=10091767-J0C-20DLF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Key |
| Packaging | Tray |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold or Gold, GXT™ |
| Color | - |
| Mounting Type | Through Hole |
| Number of Positions | - |
| Pitch | - |
| Number of Rows | - |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | XCede®, Guide Left |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 24 Signal Pairs, 27 Ground |
| Number of Columns | 6 |
