10080640-101LF
CONN HEADER HD 216POS PCBManufacturer: Amphenol ICC (FCI)
Categories: Specialized
Quality Control: Learn More
Amphenol ICC (FCI) ZipLine™ 10080640-101LF is a 216-position high-density connector header designed for demanding backplane applications. This male pin header features a through-hole mounting type with a 0.071" (1.80mm) pitch, arranged in 18 rows and 12 columns for a compact footprint. The black housing encapsulates a robust design with typical contact layout including 72 signal pairs and 72 ground contacts. Termination is achieved via press-fit technology, ensuring reliable connections in high-vibration environments. The contact finish is specified as Gold or Gold, GXT™, providing excellent conductivity and corrosion resistance. This component is widely utilized in telecommunications, data networking, and industrial computing systems where high-speed signal integrity and density are critical.
Additional Information
Series: ZipLine™RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:&mpn=10080640-101LF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold or Gold, GXT™ |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 216 |
| Pitch | 0.071"" (1.80mm) |
| Number of Rows | 18 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | Backplane |
| Connector Style | High Density (HDC, HDI, HPC) |
| Contact Finish Thickness | - |
| Contact Layout, Typical | 72 Signal Pairs, 72 Ground |
| Number of Columns | 12 |
Request a Quote
Clients Also Buy

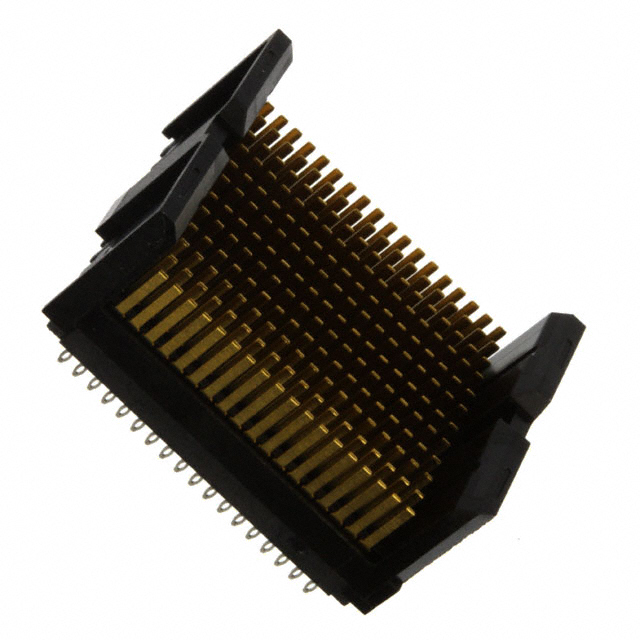

10076197-101LF
CONN HEADER HD 216POS PCB
10076209-101LF
CONN RCPT HD 216POS EDGE MNT

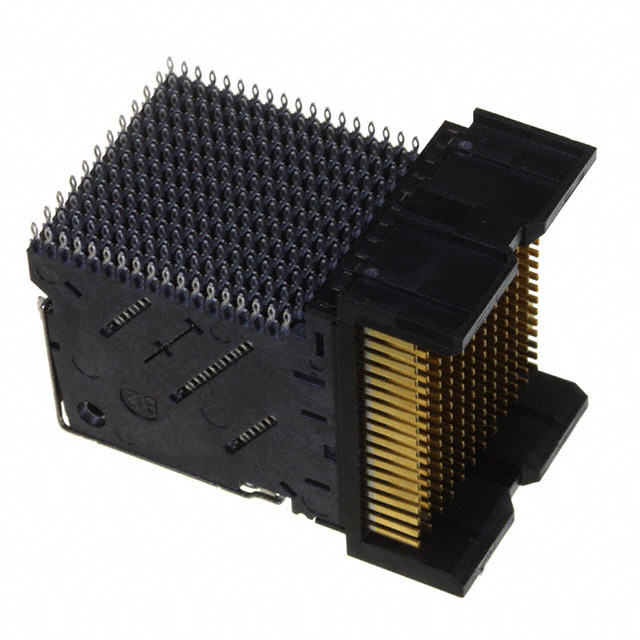

10077555-101LF
