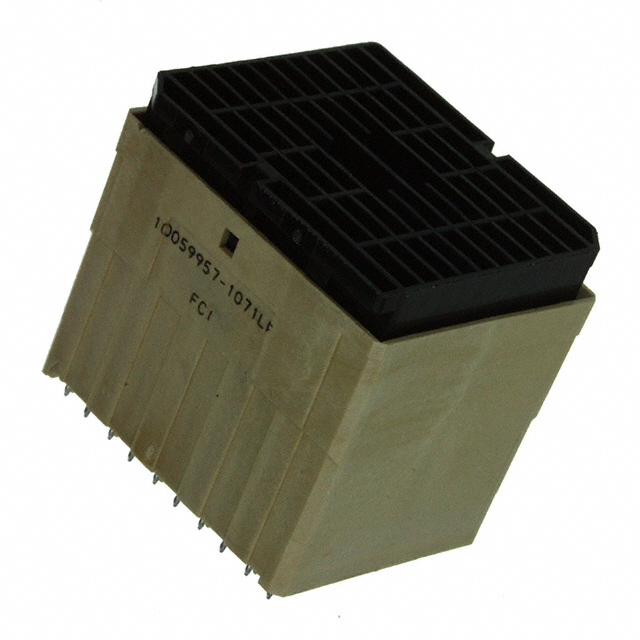

10059957-1071LF
CONN HDR HIGH SPEED 150POS PCBManufacturer: Amphenol ICC (FCI)
Categories: Specialized
Quality Control: Learn More
Amphenol ICC (FCI) Airmax VS® series connector, part number 10059957-1071LF. This high-speed connector header features 150 positions with a 0.055" (1.40mm) pitch, designed for through-hole mounting. The male pin connector configuration, with 10 columns and 15 rows, supports all loaded positions, including 50 differential pairs and 50 ground contacts. The natural colored header is equipped with gold plated contacts, offering a contact finish thickness of 30.0µin (0.76µm) for enhanced conductivity and durability. Termination is achieved via press-fit. This component is utilized in demanding applications within the telecommunications and data networking industries. Supplied in tube packaging.
Additional Information
Series: Airmax VS®RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:&mpn=10059957-1071LF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Color | Natural |
| Mounting Type | Through Hole |
| Number of Positions | 150 |
| Pitch | 0.055"" (1.40mm) |
| Number of Rows | 15 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | High Speed |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 50 Differential Pairs, 50 Ground |
| Number of Columns | 10 |
