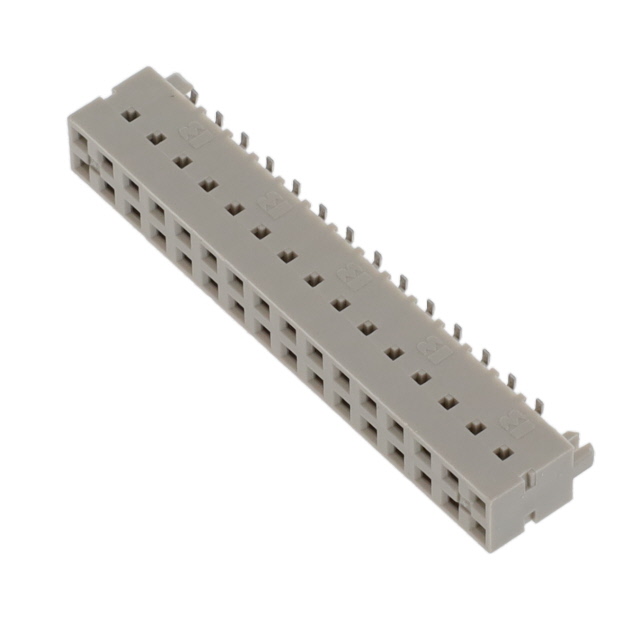

91615-314ALF
CONN RCPT 28POS 0.1 GOLD SMDManufacturer: Amphenol ICC (FCI)
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
28 Position Receptacle, Bottom or Top Entry Connector 0.100"" (2.54mm) Surface Mount Gold
Additional Information
Series: Dubox™RoHS Status: Request inventory verificationManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&mpn=91615-314ALF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Board Lock, Pick and Place |
| Packaging | Tape & Reel (TR) |
| Connector Type | Receptacle, Bottom or Top Entry |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Surface Mount |
| Number of Positions | 28 |
| Style | Board to Board |
| Operating Temperature | - |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 10.81mm |
| Insulation Color | Gray |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Insulation Height | 0.275"" (6.99mm) |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Number of Rows | 2 |
