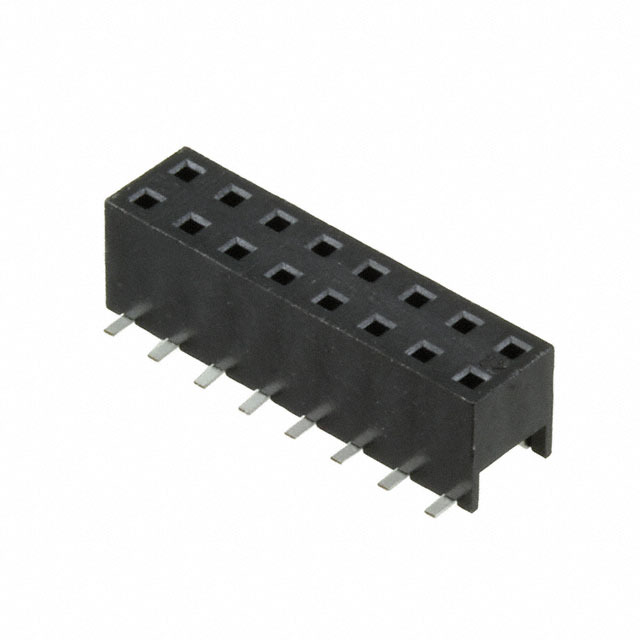

55510-316TRLF
CONN RCPT 16POS 0.079 GOLD SMDManufacturer: Amphenol ICC (FCI)
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
16 Position Receptacle Connector 0.079"" (2.00mm) Surface Mount Gold
Additional Information
Series: Minitek® 2.00mmRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&mpn=55510-316TRLF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Pick and Place |
| Packaging | Tape & Reel (TR) |
| Connector Type | Receptacle |
| Voltage Rating | 200V |
| Current Rating (Amps) | 2A |
| Mounting Type | Surface Mount |
| Number of Positions | 16 |
| Style | Board to Board |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.079"" (2.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Insulation Height | 0.177"" (4.50mm) |
| Row Spacing - Mating | 0.079"" (2.00mm) |
| Number of Rows | 2 |
