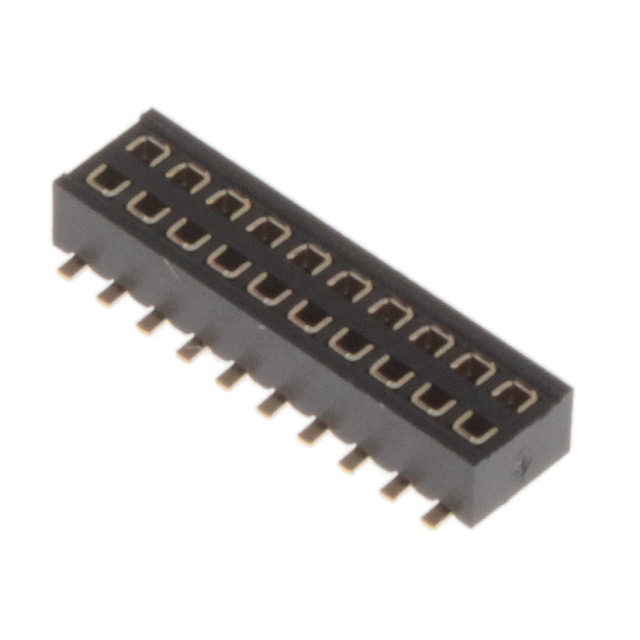

20021323-00020T1LF
CONN RCPT 20POS 0.05 GOLD SMDManufacturer: Amphenol ICC (FCI)
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
20 Position Receptacle, Bottom Entry Connector 0.050"" (1.27mm) Surface Mount Gold
Additional Information
Series: Minitek127® 1.27mmRoHS Status: Request inventory verificationManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:&mpn=20021323-00020T1LF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Receptacle, Bottom Entry |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.050"" (1.27mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | FLASH |
| Contact Finish - Post | - |
| Contact Length - Post | - |
| Insulation Height | 0.087"" (2.20mm) |
| Row Spacing - Mating | 0.050"" (1.27mm) |
| Number of Rows | 2 |
Request a Quote
Clients Also Buy
67230-004LF
CONN RCPT 4POS 0.1 GOLD PCB R/A
10131931-111ULF
CONN RCPT 11P 0.079 GOLD SMD R/A

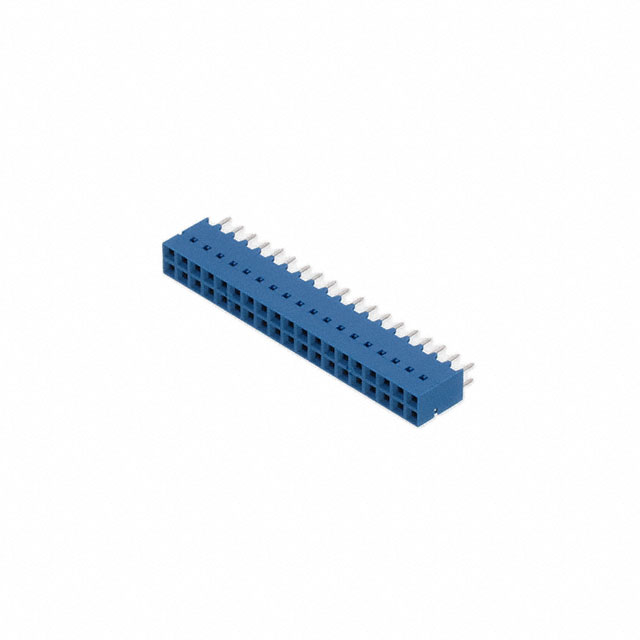

87606-319LF
