98417-G61-22LF
CONN HEADER R/A 22POS 2MMManufacturer: Amphenol ICC (FCI)
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 22 position 0.079"" (2.00mm)
Additional Information
Series: Minitek®RoHS Status: Request inventory verificationManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Keying Slot |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 200V (AC/DC) |
| Current Rating (Amps) | 2A (AC/DC) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 22 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | - |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Cream |
| Pitch - Mating | 0.079"" (2.00mm) |
| Contact Finish - Mating | Gold, GXT™ |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.098"" (2.50mm) |
| Insulation Height | 0.240"" (6.10mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Row Spacing - Mating | 0.079"" (2.00mm) |
| Contact Length - Mating | 0.157"" (4.00mm) |
Request a Quote
Clients Also Buy

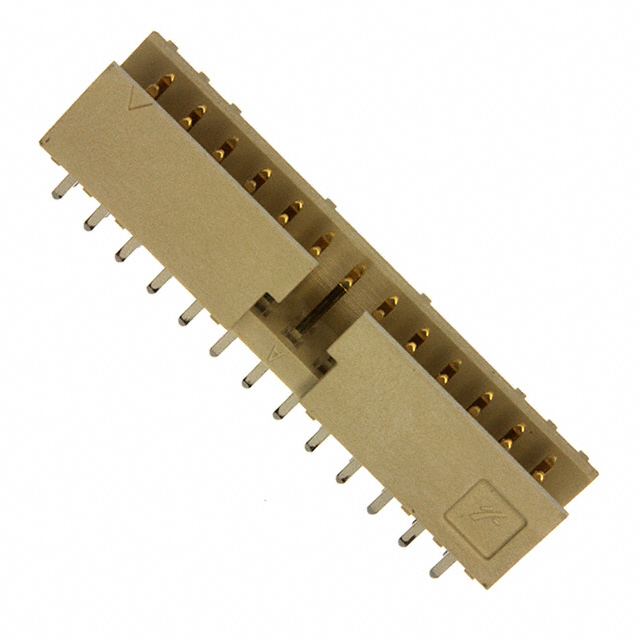

10075025-G01-26ULF
