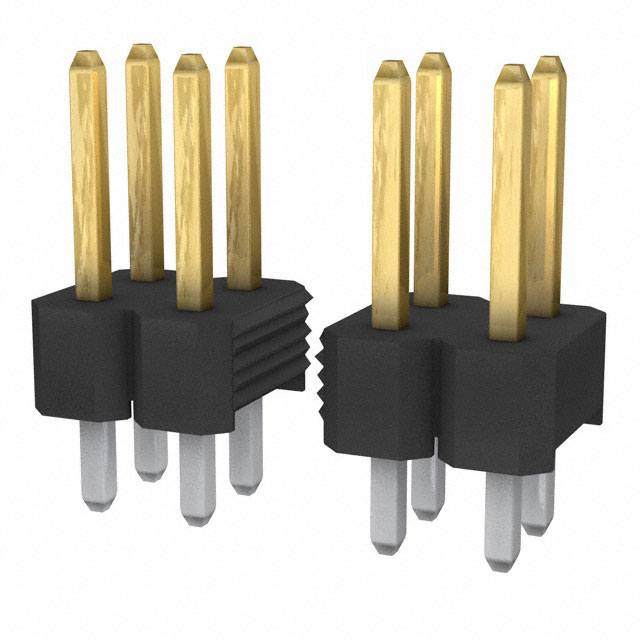

861400402YO2LF
CONN HEADER VERT 40POS 2.54MMManufacturer: Amphenol ICC (FCI)
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 40 position 0.100"" (2.54mm)
Additional Information
Series: BERGSTIK®RoHS Status: Request inventory verificationManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:&mpn=861400402YO2LF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header, Breakaway |
| Voltage Rating | 1000V |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | - |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold or Gold, GXT™ |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - |
| Contact Shape | Square |
| Contact Length - Post | 0.118"" (3.00mm) |
| Insulation Height | 0.102"" (2.60mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.496"" (12.60mm) |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.276"" (7.00mm) |
Request a Quote
Clients Also Buy
10069230-001ALF
CONN HEADER

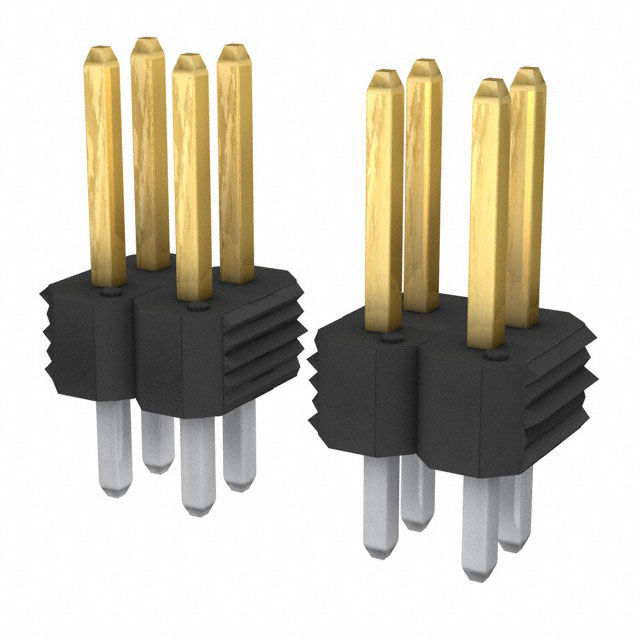

54102-S08-00
