78548-260HLF

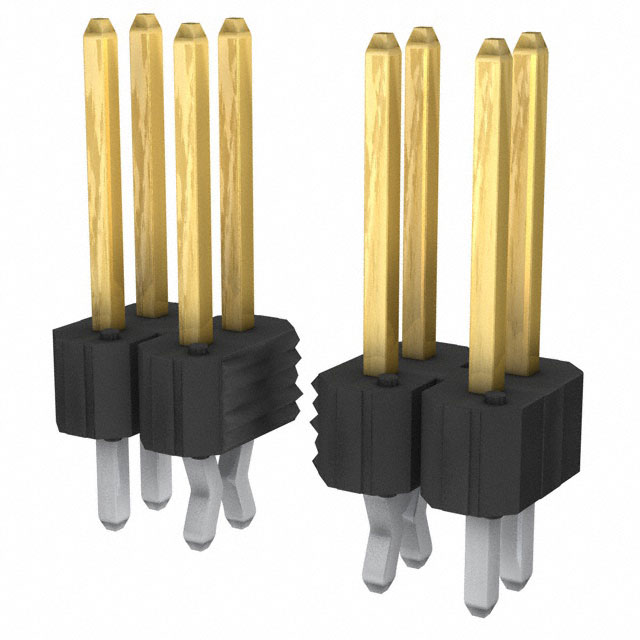

CONN HEADER VERT 60POS 2.54MMManufacturer: Amphenol ICC (FCI)
Categories: Headers, Male Pins
Quality Control: Learn More
Amphenol ICC (FCI) BERGSTIK® II series connector header, part number 78548-260HLF, features a 60-position, 2-row configuration with a 2.54mm pitch. This vertical, through-hole mounted header utilizes male pin contacts made of phosphor bronze with a gold or GXT™ mating finish, 15.0µin (0.38µm) thick. The insulation material is Polycyclohexylenedimethylene Terephthalate (PCT) with a UL94 V-0 flammability rating, and the insulation height is 2.54mm. Termination is via kinked pin, solder. This connector is designed for board-to-board applications, commonly found in industrial automation, data communication, and consumer electronics sectors.
Additional Information
Series: BERGSTIK® IIRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:&mpn=78548-260HLF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Style | Board to Board |
| Operating Temperature | - |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Kinked Pin, Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold or Gold, GXT™ |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | - |
| Contact Shape | Square |
| Contact Length - Post | 0.120"" (3.05mm) |
| Insulation Height | 0.100"" (2.54mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.538"" (13.67mm) |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.318"" (8.08mm) |
