68657-136H

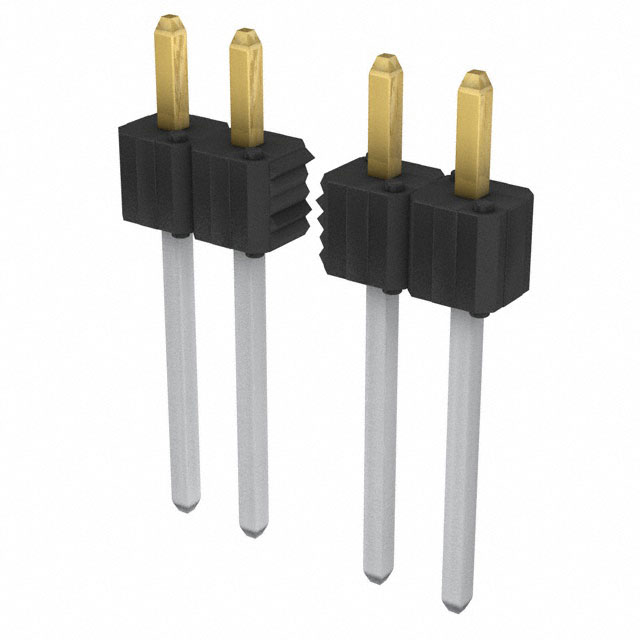

CONN HEADER VERT 36POS 2.54MMManufacturer: Amphenol ICC (FCI)
Categories: Headers, Male Pins
Quality Control: Learn More
Amphenol ICC (FCI) BERGSTIK® II header, part number 68657-136H, is a vertical through-hole connector featuring 36 positions with a 2.54mm pitch. This unshrouded header utilizes male pin contacts made of phosphor bronze, offering a secure connection with a square contact shape. The mating contacts are finished with 30.0µin (0.76µm) of gold or GXT™ for enhanced durability and conductivity, with a mating contact length of 0.120" (3.05mm). Designed for board-to-board applications, this component supports a current rating of 5A and a voltage rating of 110V. The insulation color is black, with a material flammability rating of UL94 V-0, and it is supplied in bulk packaging. This header is commonly found in industrial automation, telecommunications, and consumer electronics sectors.
Additional Information
Series: BERGSTIK® IIRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:&mpn=68657-136H&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 110V |
| Current Rating (Amps) | 5A |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Rows | 1 |
| Style | Board to Board |
| Operating Temperature | - |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold or Gold, GXT™ |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | - |
| Contact Shape | Square |
| Contact Length - Post | 0.368"" (9.35mm) |
| Insulation Height | 0.100"" (2.54mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.588"" (14.94mm) |
| Insulation Material | - |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.120"" (3.05mm) |
