68024-102
CONN HEADER VERT 2POS 2.54MMManufacturer: Amphenol ICC (FCI)
Categories: Headers, Male Pins
Quality Control: Learn More

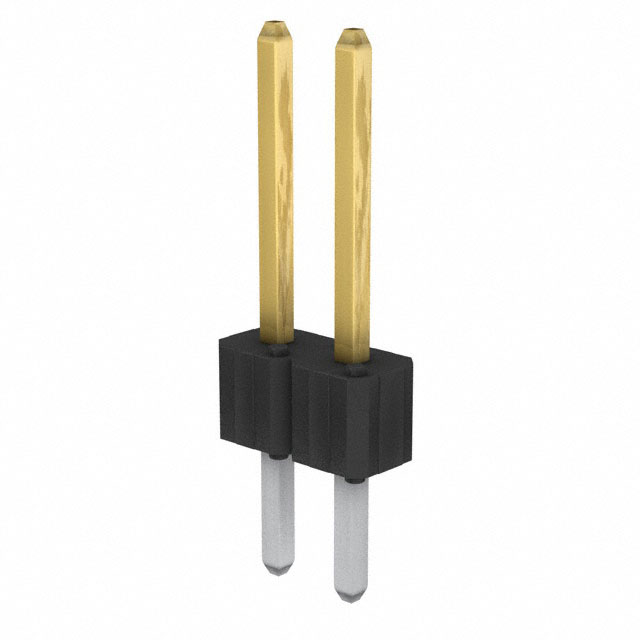

Amphenol ICC (FCI) BERGSTIK® II 68024-102 is a 2-position, unshrouded vertical header designed for board-to-board applications. Featuring a 2.54mm pitch, this through-hole component utilizes male pin contacts made from phosphor bronze with a 30.0µin (0.76µm) gold or GXT™ mating finish. The insulation, colored black, meets UL94 V-0 flammability rating and has a height of 0.100" (2.54mm). The header's mating contact length is 0.318" (8.08mm), with a post contact length of 0.150" (3.81mm). This component is suitable for high-volume manufacturing, supplied in bulk packaging. Its robust construction and precise mating interface make it a reliable choice for industrial automation and telecommunications infrastructure.
Additional Information
Series: BERGSTIK® IIRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:&mpn=68024-102&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Style | Board to Board |
| Operating Temperature | - |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold or Gold, GXT™ |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | - |
| Contact Shape | Square |
| Contact Length - Post | 0.150"" (3.81mm) |
| Insulation Height | 0.100"" (2.54mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.568"" (14.43mm) |
| Insulation Material | - |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.318"" (8.08mm) |
