68004-236

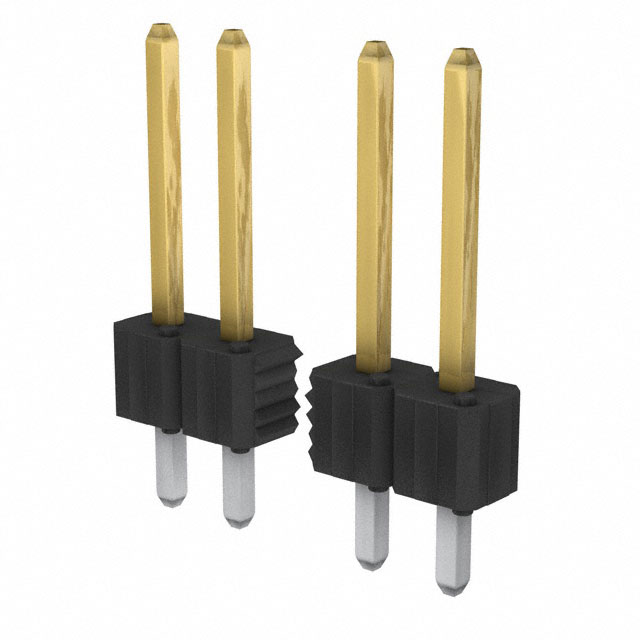

CONN HEADER VERT 36POS 2.54MMManufacturer: Amphenol ICC (FCI)
Categories: Headers, Male Pins
Quality Control: Learn More
The Amphenol ICC (FCI) BERGSTIK® II 68004-236 is a 36-position, single-row male pin header with a 2.54mm pitch. This through-hole connector features a square contact shape made from phosphor bronze, with mating contacts finished in gold or GXT™ to a thickness of 15.0µin (0.38µm). The post contact length is 0.107" (2.71mm) and the mating contact length is 0.318" (8.08mm). Designed for board-to-board applications, it offers a current rating of 5A and a voltage rating of 110V. The black insulation, made from a UL94 V-0 rated material, ensures safety in demanding environments. This unshrouded header utilizes a push-pull fastening type and is suitable for solder termination. It is commonly found in industrial automation, telecommunications, and consumer electronics.
Additional Information
Series: BERGSTIK® IIRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:&mpn=68004-236&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 110V |
| Current Rating (Amps) | 5A |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Rows | 1 |
| Style | Board to Board |
| Operating Temperature | - |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold or Gold, GXT™ |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | - |
| Contact Shape | Square |
| Contact Length - Post | 0.107"" (2.71mm) |
| Insulation Height | 0.100"" (2.54mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.525"" (13.34mm) |
| Insulation Material | - |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.318"" (8.08mm) |
