68000-136
CONN HEADER VERT 36POS 2.54MMManufacturer: Amphenol ICC (FCI)
Categories: Headers, Male Pins
Quality Control: Learn More

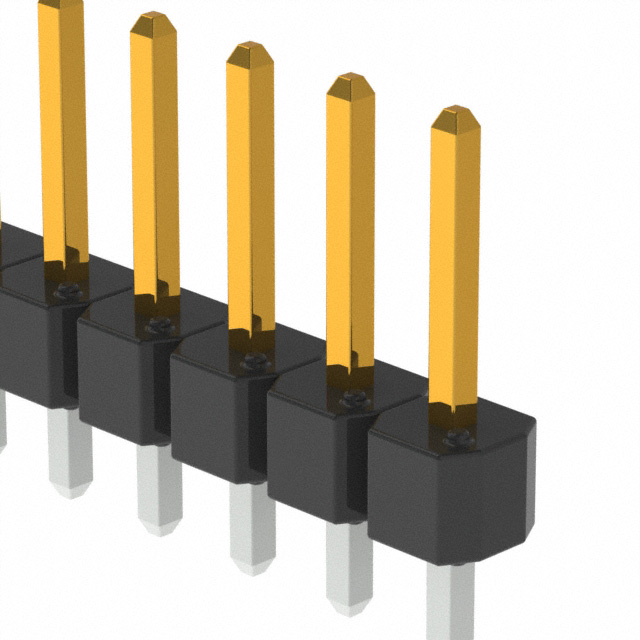

Amphenol ICC (FCI) BERGSTIK® II 68000-136 is a 36-position, single-row vertical header with a 2.54mm pitch. This through-hole component features phosphor bronze male pins with a square contact shape, designed for mating with gold or GXT™ plating offering 30.0µin thickness. The mating contact length is 0.230", with a post length of 0.095". The header supports a current rating of 3A per contact and has a UL94 V-0 flammability rating for its black insulator. Operating temperature ranges from -65°C to 125°C. This connector is utilized in applications requiring reliable board-to-board connections within industrial automation, telecommunications, and consumer electronics sectors.
Additional Information
Series: BERGSTIK® IIRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:&mpn=68000-136&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 3A per Contact |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Rows | 1 |
| Style | Board to Board |
| Operating Temperature | -65°C ~ 125°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold or Gold, GXT™ |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | - |
| Contact Shape | Square |
| Contact Length - Post | 0.095"" (2.41mm) |
| Insulation Height | 0.100"" (2.54mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.425"" (10.80mm) |
| Insulation Material | - |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.230"" (5.84mm) |
