20021621-00020D1LF
CONN HEADER SMD 20POS 1.27MMManufacturer: Amphenol ICC (FCI)
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Surface Mount 20 position 0.050"" (1.27mm)
Additional Information
Series: Minitek127® 20021621RoHS Status: Request inventory verificationManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:&mpn=20021621-00020D1LF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Keying Slot, Pick and Place |
| Packaging | Tube |
| Connector Type | Header |
| Voltage Rating | 125VAC |
| Current Rating (Amps) | 1A per Contact |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock/Eject Hooks |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.050"" (1.27mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | FLASH |
| Contact Finish - Post | Gold |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.327"" (8.30mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Plastic |
| Row Spacing - Mating | 0.050"" (1.27mm) |
| Contact Length - Mating | - |
Request a Quote
Clients Also Buy

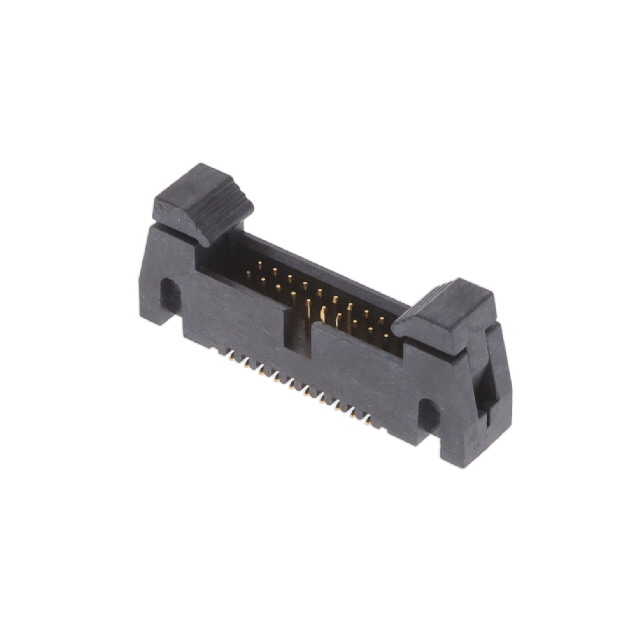

20021621-00020T4LF
