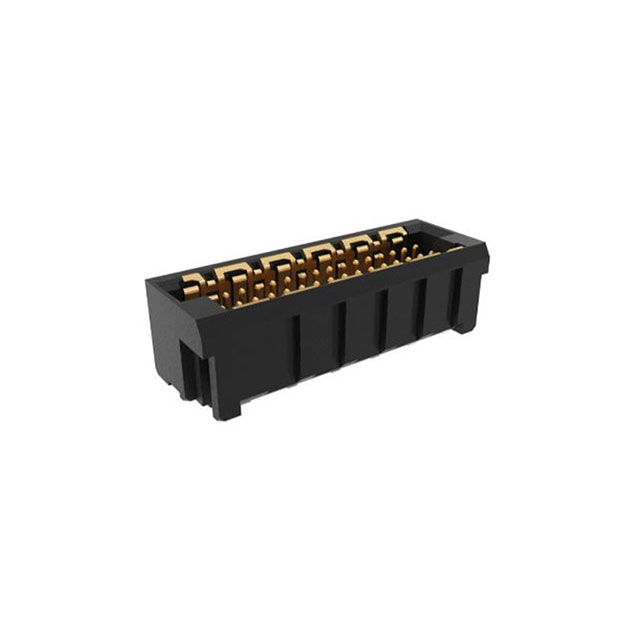

10150098-3200RLF
CONN MICROSPEED 1.00MM BOARD-Manufacturer: Amphenol ICC (FCI)
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Surface Mount 32 position 0.039"" (1.00mm)
Additional Information
Series: Minitek® MicroSpeedRoHS Status: Request inventory verificationManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&mpn=10150098-3200RLF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Board Guide, Pick and Place, Solder Retention |
| Packaging | Tape & Reel (TR) |
| Connector Type | Header |
| Voltage Rating | 100VAC |
| Current Rating (Amps) | 1A per Contact |
| Mounting Type | Surface Mount |
| Number of Positions | 32 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.039"" (1.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.94µin (0.100µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.226"" (5.74mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Row Spacing - Mating | 0.059"" (1.50mm) |
| Contact Length - Mating | 0.114"" (2.90mm) |
Request a Quote
Clients Also Buy

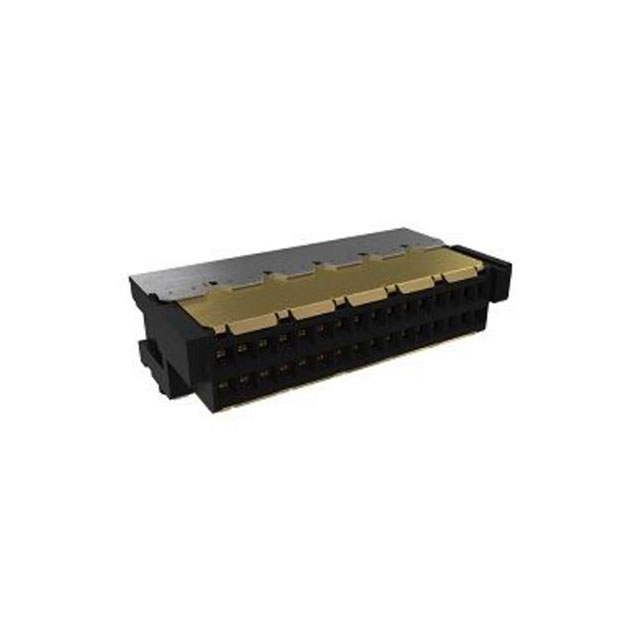

10150095-3200RLF
CONN MICROSPEED 1.00MM BOARD-

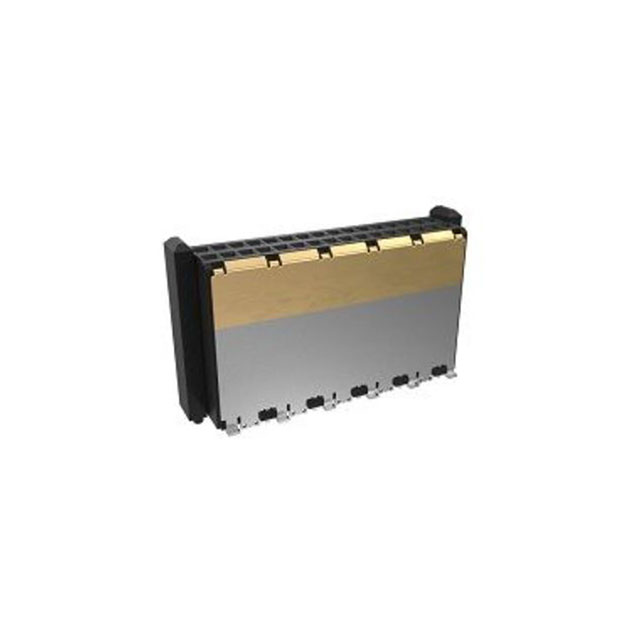

10150097-3200RLF
