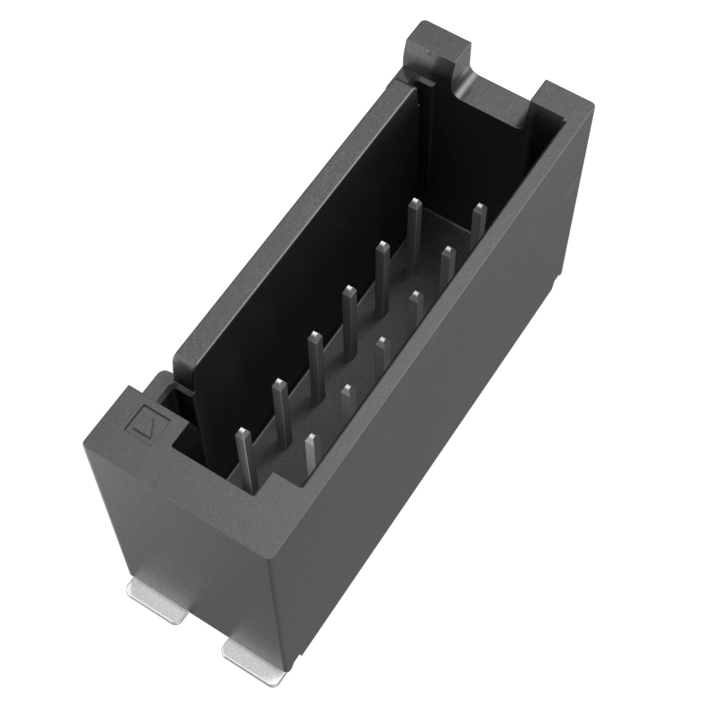

10143578-112KLF
CONN MICROSPACE HDR-ASSY STG SManufacturer: Amphenol ICC (FCI)
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Surface Mount 12 position 0.100"" (2.54mm)
Additional Information
Series: Minitek MicroSpace™ 1.27mmRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&mpn=10143578-112KLF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Board Guide, Solder Retention |
| Packaging | Tape & Reel (TR) |
| Connector Type | Header |
| Voltage Rating | 48V |
| Current Rating (Amps) | 4A |
| Mounting Type | Surface Mount |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 130°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.526"" (13.35mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | 0.096"" (2.43mm) |
| Contact Length - Mating | - |
Request a Quote
Clients Also Buy

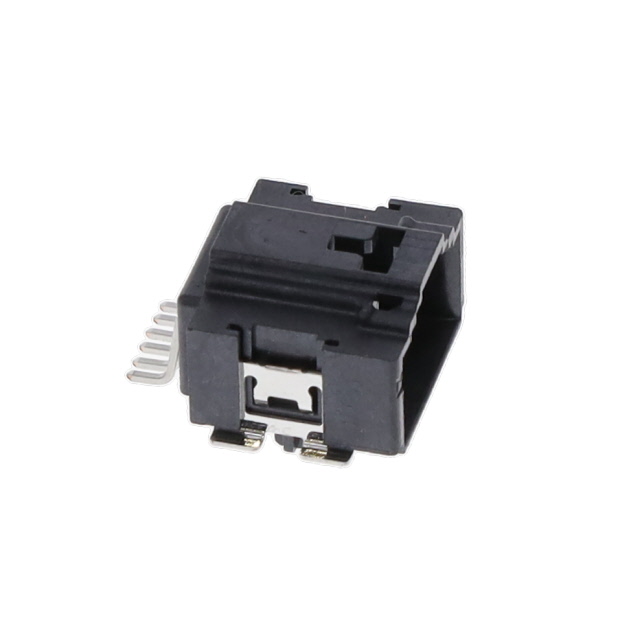

10142344-106KLF
CONN MICROSPACE HDR-ASSY STG T

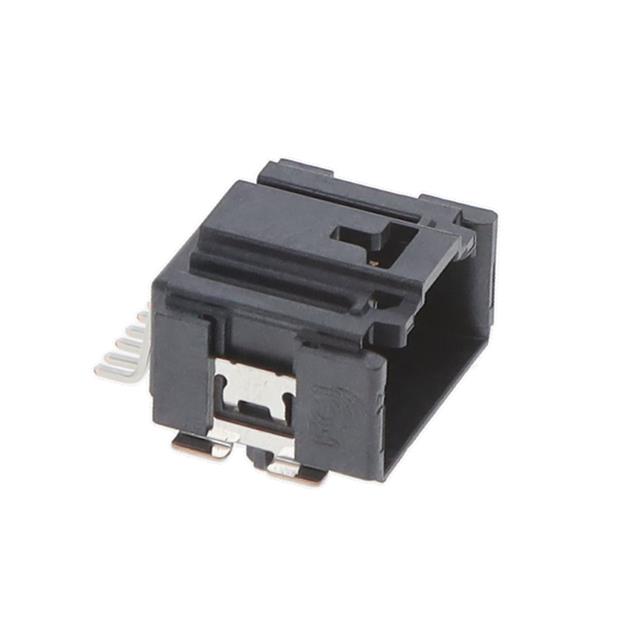

10142344-107KLF
HORIZONTAL HEADER

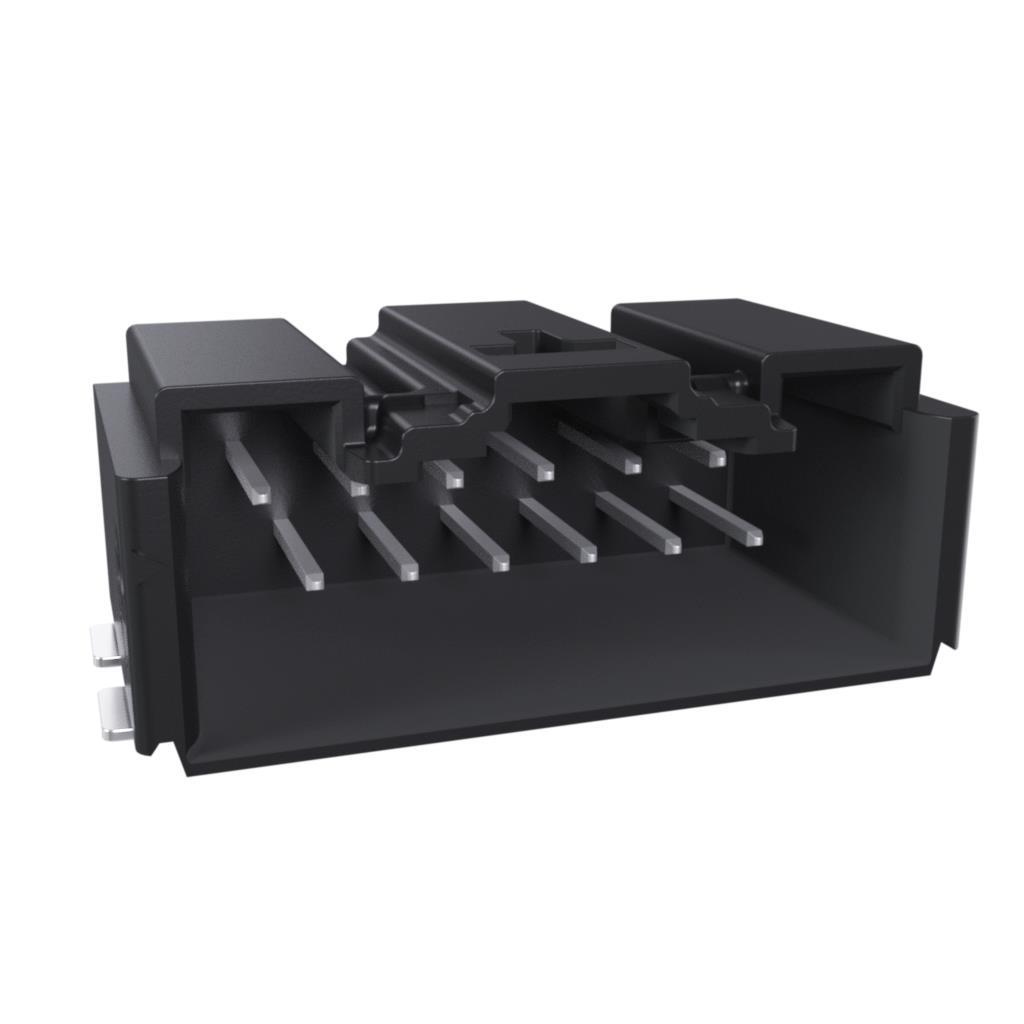

10142344-312KLF
