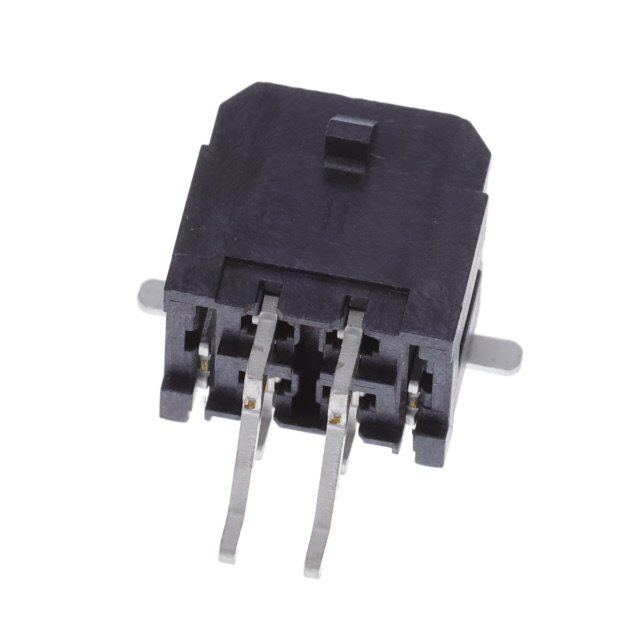

10137924-0411LF
CONN HEADER SMD R/A 4POS 3MMManufacturer: Amphenol ICC (FCI)
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Surface Mount, Right Angle 4 position 0.118"" (3.00mm)
Additional Information
Series: Minitek® Pwr 3.0RoHS Status: Request inventory verificationManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&mpn=10137924-0411LF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Solder Retention |
| Packaging | Tape & Reel (TR) |
| Connector Type | Header |
| Voltage Rating | 600VAC/DC |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.118"" (3.00mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.290"" (7.37mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Row Spacing - Mating | 0.118"" (3.00mm) |
| Contact Length - Mating | - |
Request a Quote
Clients Also Buy

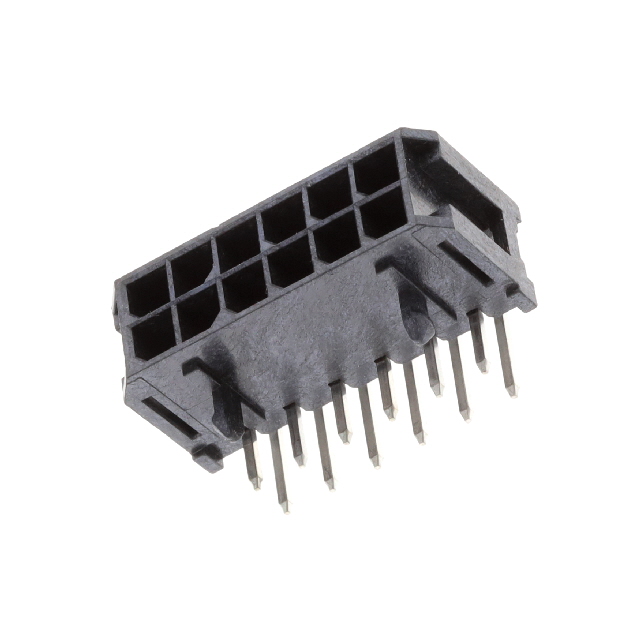

10127720-121LF
CONN HEADER R/A 12POS 3MM
10127720-221GLF
CONN PWR3.0 RA HEADER

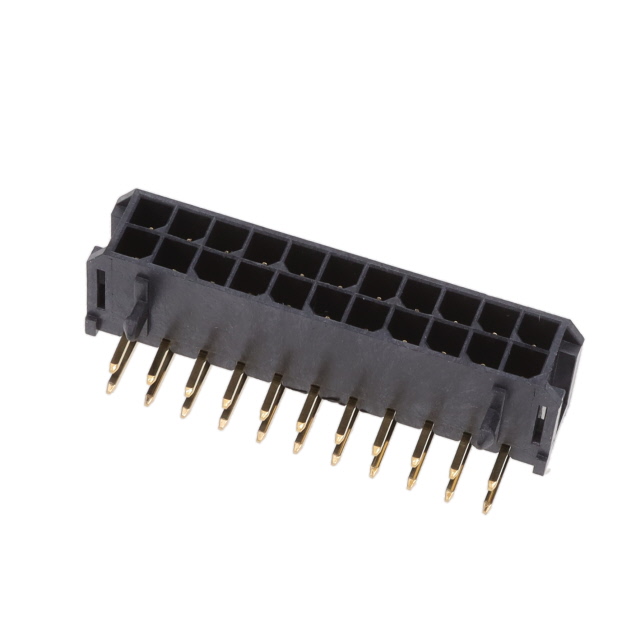

10127720-222LF
