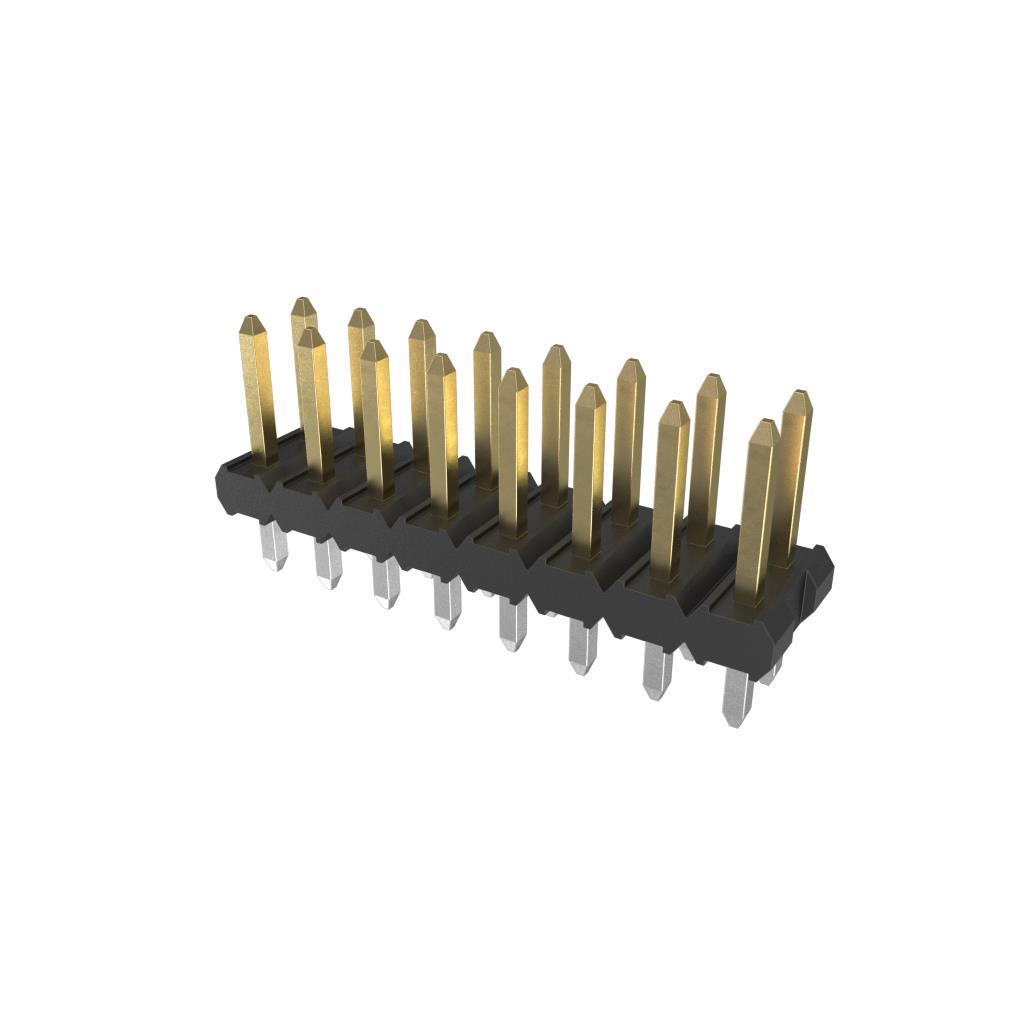

10075024-G01-08ULF
CONN HEADER VERT 16POS 2MMManufacturer: Amphenol ICC (FCI)
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 16 position 0.079"" (2.00mm)
Additional Information
Series: Minitek® 2.00mmRoHS Status: Request inventory verificationManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:&mpn=10075024-G01-08ULF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Header |
| Voltage Rating | 200V (AC/DC) |
| Current Rating (Amps) | 2A (AC/DC) |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | - |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.079"" (2.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.079"" (2.00mm) |
| Insulation Height | 0.059"" (1.50mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.295"" (7.49mm) |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | 0.079"" (2.00mm) |
| Contact Length - Mating | 0.157"" (4.00mm) |
Request a Quote
Clients Also Buy

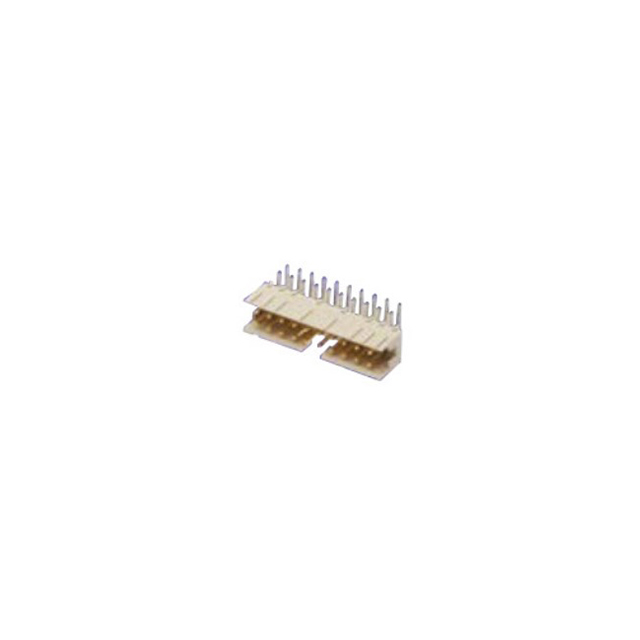

10072354-F01-38ULF
CONN HEADER R/A 38POS 2MM

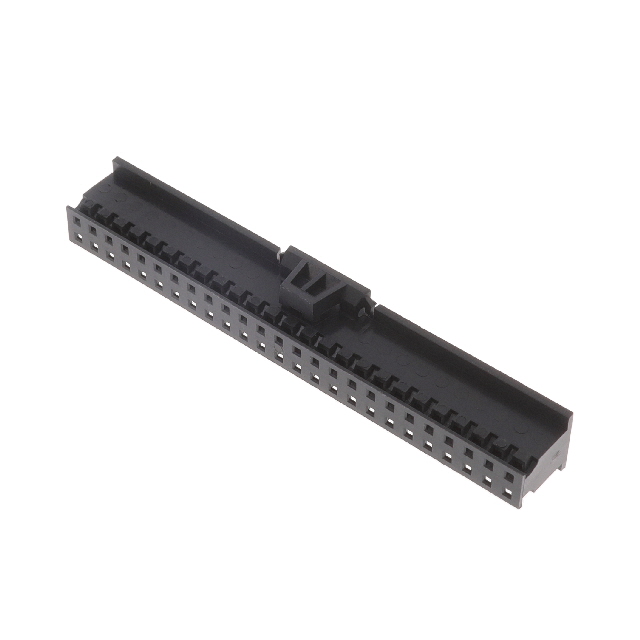

10073599-050LF
CONN RCPT HSG 50POS 2.00MM

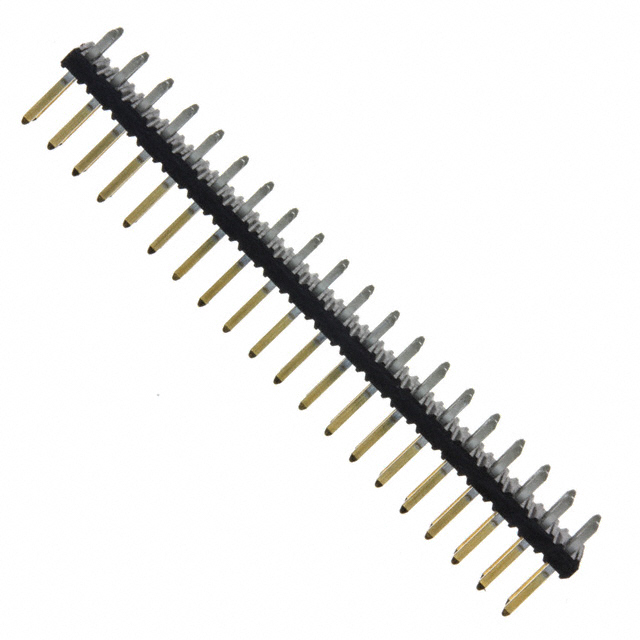

10075024-G01-20ULF
