HM2J71PE5118N9

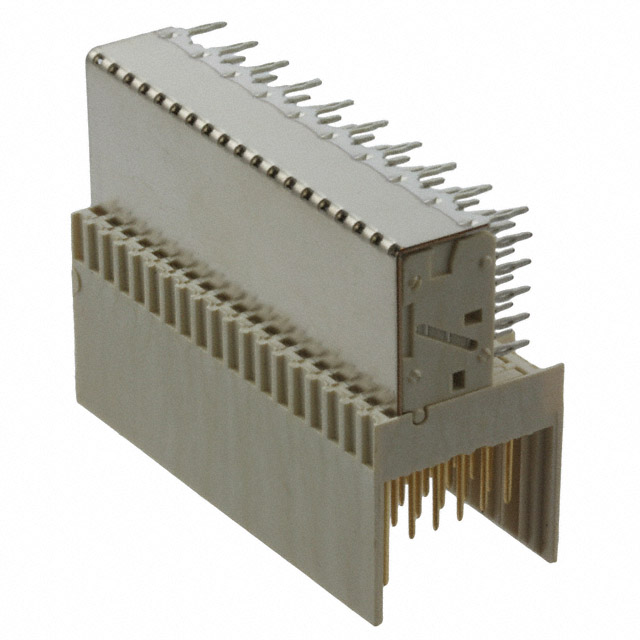

CONN HEADER 114POS 2MM PRESS-FITManufacturer: Amphenol ICC (FCI)
Categories: Hard Metric, Standard
Quality Control: Learn More
Amphenol ICC (FCI) Millipacs® HM2J71PE5118N9 is a 114-position male header designed for press-fit termination. This connector features a 2.00mm pitch and a right-angle, board edge mounting style with through-hole mounting. It is constructed with gold contact plating, offering a thickness of 30.0µin (0.76µm) for enhanced conductivity and durability. The connector houses 95 signal positions and 19 ground positions, with all positions loaded. This component is suitable for applications in telecommunications, data networking, and industrial automation where robust and reliable interconnects are critical. It is supplied in tray packaging.
Additional Information
Series: Millipacs®RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:&mpn=HM2J71PE5118N9&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tray |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 114 (95 + 19 Ground) |
| Pitch | 0.079"" (2.00mm) |
| Number of Rows | 5 + 1 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | B 19 |
| Contact Finish Thickness | 30.0µin (0.76µm) |
