SFW24R-2STE9LF
CONN FFC FPC TOP 24POS 1MM R/AManufacturer: Amphenol ICC (FCI)
Categories: FFC, FPC (Flat Flexible) Connector Assemblies
Quality Control: Learn More

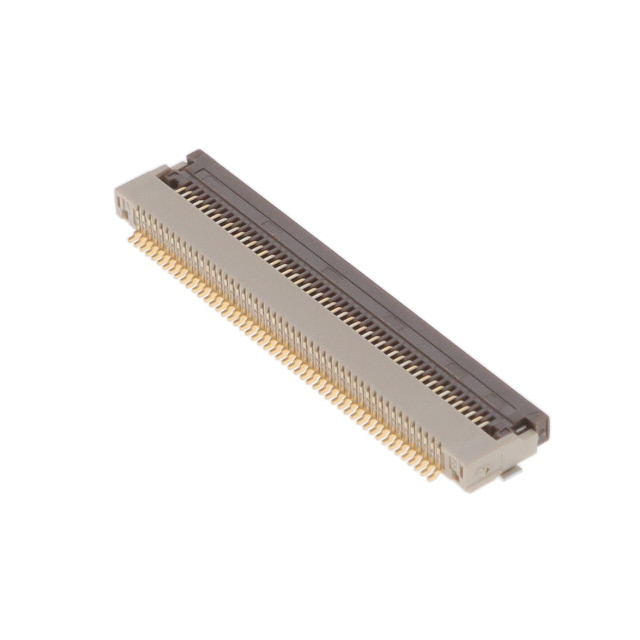

Amphenol ICC (FCI) SFW-R series connector, part number SFW24R-2STE9LF, is a 24-position FFC/FPC connector with a 1.00mm pitch. This right-angle, surface-mount component features top-entry contact configuration and a Zero Insertion Force (ZIF) mechanism with a slide lock for secure cable termination. Constructed with glass-filled Polyphenylene Sulfide (PPS) housing and actuator, it offers excellent material flammability resistance (UL94 V-0) and a broad operating temperature range of -55°C to 105°C. The phosphor bronze contacts are finished with tin, supporting FFC/FPC thicknesses of 0.30mm and 0.33mm. With a voltage rating of 100V and a height above board of 2.70mm, this connector is suitable for applications in consumer electronics, industrial automation, and automotive systems. Supplied in Tape & Reel packaging.
Additional Information
Series: SFW-RRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&mpn=SFW24R-2STE9LF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Tin |
| Voltage Rating | 100V |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 24 |
| Pitch | 0.039"" (1.00mm) |
| Operating Temperature | -55°C ~ 105°C |
| Termination | Solder |
| Height Above Board | 0.106"" (2.70mm) |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.30mm, 0.33mm |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Cable End Type | Straight, Tapered |
| Flat Flex Type | FFC, FPC |
| Connector/Contact Type | Contacts, Top |
