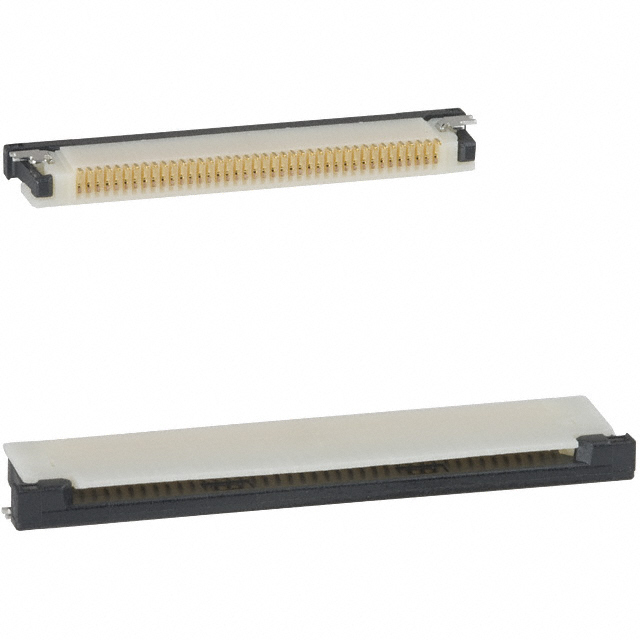

62684-402100ALF
CONN FPC TOP 40POS 0.5MM R/AManufacturer: Amphenol ICC (FCI)
Categories: FFC, FPC (Flat Flexible) Connector Assemblies
Quality Control: Learn More
40 Position FPC Connector Contacts, Top 0.020"" (0.50mm) Surface Mount, Right Angle
Additional Information
Series: OPURoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&mpn=62684-402100ALF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Gold |
| Voltage Rating | 50V |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 40 |
| Pitch | 0.020"" (0.50mm) |
| Operating Temperature | -55°C ~ 85°C |
| Termination | Solder |
| Height Above Board | 0.079"" (2.00mm) |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | Thermoplastic, Glass Filled |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.30mm, 0.33mm |
| Housing Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Cable End Type | Straight, Tapered |
| Flat Flex Type | FPC |
| Connector/Contact Type | Contacts, Top |
