62674-201121ALF
CONN FFC VERT 20POS 0.5MM SMDManufacturer: Amphenol ICC (FCI)
Categories: FFC, FPC (Flat Flexible) Connector Assemblies
Quality Control: Learn More
Amphenol ICC (FCI) SFV-S series connector, part number 62674-201121ALF, is a vertical, 20-position FFC/FPC connector with a 0.50mm pitch designed for surface mounting. This component features a Zero Insertion Force (ZIF) mechanism, facilitating easy and reliable connection of 0.30mm thick FFC/FPC cables. The contacts are constructed from phosphor bronze with a gold finish for enhanced conductivity and durability. The housing and actuator are made from UL94 V-0 rated glass-filled plastic for thermal stability and mechanical integrity. With an operating temperature range of -55°C to 105°C and a voltage rating of 50V, this connector is suitable for applications in automotive, industrial, and consumer electronics sectors requiring compact and flexible interconnect solutions. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: SFV-SRoHS Status: RoHS CompliantManufacturer Lead Time: 21 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&mpn=62674-201121ALF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Gold |
| Voltage Rating | 50V |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Pitch | 0.020"" (0.50mm) |
| Operating Temperature | -55°C ~ 105°C |
| Termination | Kinked Pin |
| Height Above Board | 0.161"" (4.10mm) |
| Locking Feature | - |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | Plastic, Glass Filled |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.30mm |
| Housing Material | Plastic, Glass Filled |
| Cable End Type | Straight or Tapered |
| Flat Flex Type | FFC, FPC |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
Request a Quote
Clients Also Buy

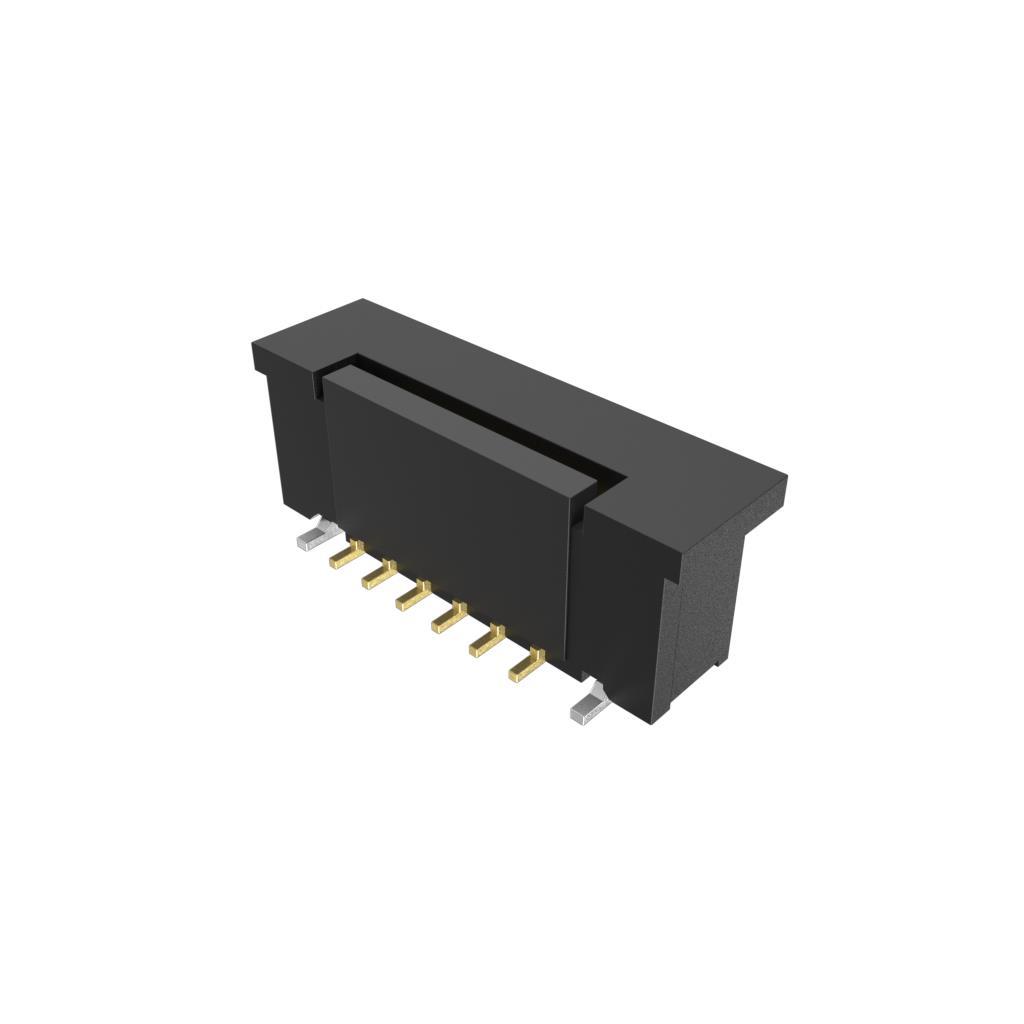

62674-121121ALF
