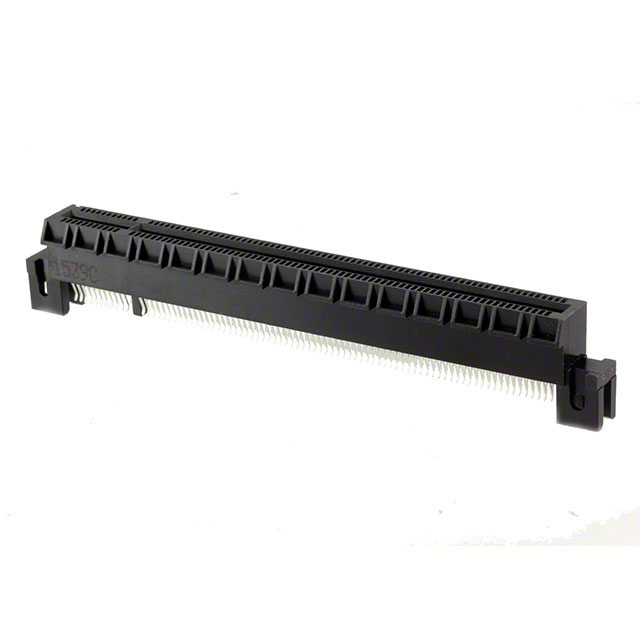

G630HAA02247EU
CONN PCI EXP FMALE 164POS 0.039Manufacturer: Amphenol ICC (FCI)
Categories: Edgeboard Connectors
Quality Control: Learn More
164 Position Female Connector PCI Express™ Gold 0.039"" (1.00mm) Black
Additional Information
Series: G630HRoHS Status: Request inventory verificationManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:&mpn=G630HAA02247EU&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Card Extender, Locking Ramp |
| Packaging | Tray |
| Gender | Female |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 164 |
| Pitch | 0.039"" (1.00mm) |
| Operating Temperature | - |
| Read Out | Dual |
| Contact Type | - |
| Card Type | PCI Express™ |
| Card Thickness | 0.091"" (2.30mm) |
| Flange Feature | Straddle Mount Opening, Unthreaded, 0.079"" (2.00mm) |
| Termination | Solder |
| Contact Finish Thickness | FLASH |
| Contact Material | Copper Alloy |
| Number of Positions/Bay/Row | - |
| Number of Rows | 2 |
