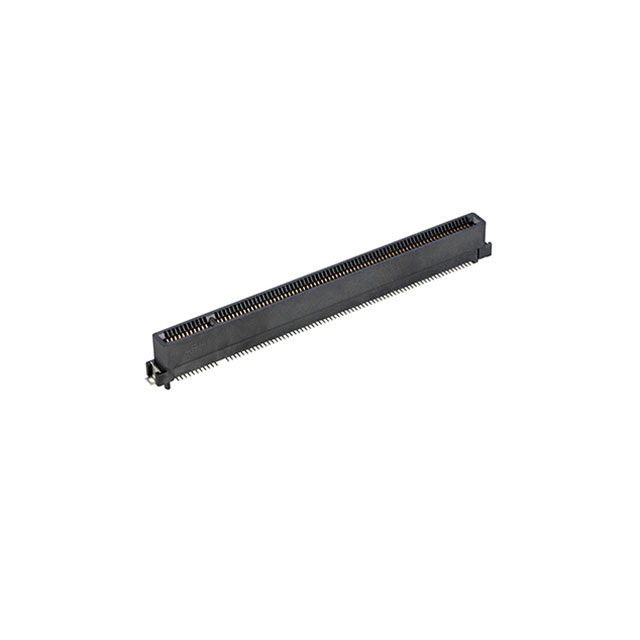

CEE009800140311
CONN PCI EXP FMALE 98POS 0.039Manufacturer: Amphenol ICC (FCI)
Categories: Edgeboard Connectors
Quality Control: Learn More
98 Position Female Connector PCI Express™ Gold 0.039"" (1.00mm) Black
Additional Information
Series: Cool Edge 1.00mm PCIeRoHS Status: Request inventory verificationManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:&mpn=CEE009800140311&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Board Guide, Board Lock, Solder Retention |
| Packaging | Tray |
| Gender | Female |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Surface Mount |
| Number of Positions | 98 |
| Pitch | 0.039"" (1.00mm) |
| Operating Temperature | -55°C ~ 105°C |
| Read Out | Dual |
| Contact Type | Cantilever |
| Card Type | PCI Express™ |
| Card Thickness | 0.062"" (1.57mm) |
| Flange Feature | - |
| Termination | Solder |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Material | Copper Alloy |
| Number of Positions/Bay/Row | 11; 38 |
| Number of Rows | 2 |
Request a Quote
Clients Also Buy
CEE016400140101
CONN PCI EXP FMALE 164POS 0.039

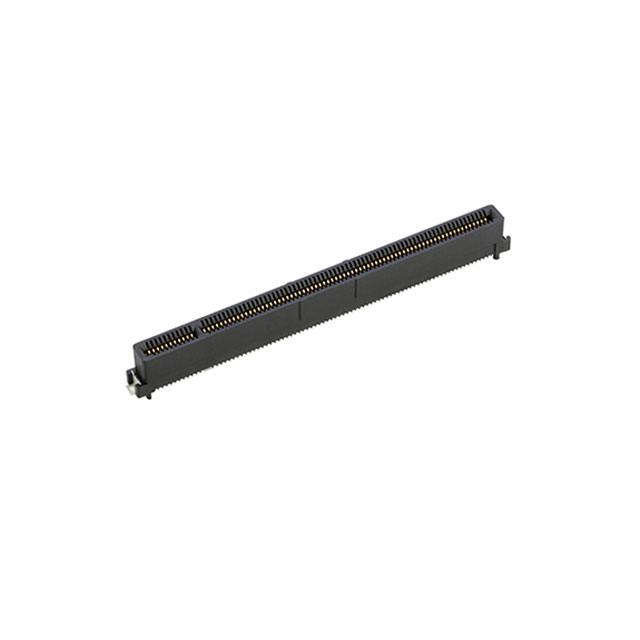

CEE016400140311
