10151114-001TLF
CONN PCI EXP FMALE 314POS 0.020Manufacturer: Amphenol ICC (FCI)
Categories: Edgeboard Connectors
Quality Control: Learn More

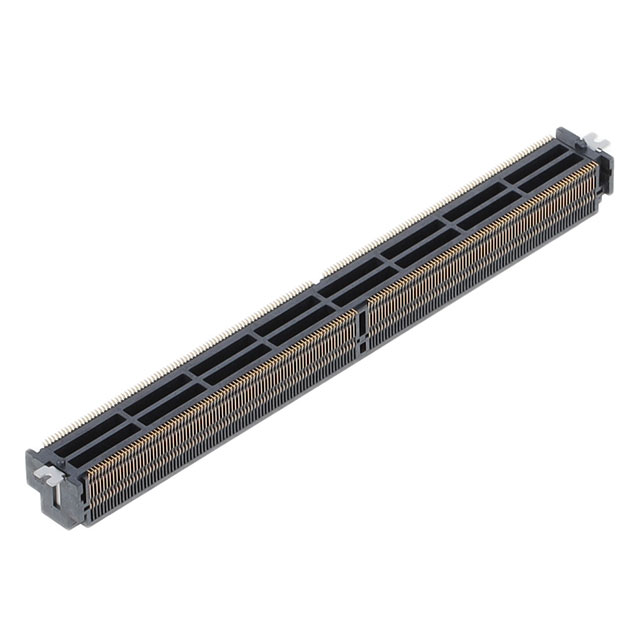

314 Position Female Connector PCI Express™ Gold 0.020"" (0.50mm) Black
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:&mpn=10151114-001TLF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Board Guide, Solder Retention |
| Packaging | Tray |
| Gender | Female |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 314 |
| Pitch | 0.020"" (0.50mm) |
| Operating Temperature | - |
| Read Out | Dual |
| Contact Type | - |
| Card Type | PCI Express™ |
| Card Thickness | 0.047"" (1.20mm) |
| Flange Feature | - |
| Termination | Solder |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Material | Copper Alloy |
| Number of Positions/Bay/Row | - |
| Number of Rows | 2 |
