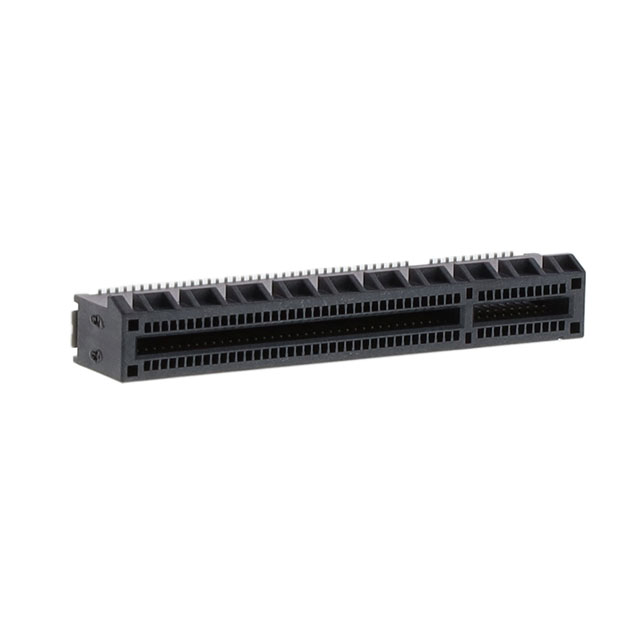

10146070-112Y1LF
CONN PCI EXP FMALE 98POS 0.039Manufacturer: Amphenol ICC (FCI)
Categories: Edgeboard Connectors
Quality Control: Learn More
98 Position Female Connector PCI Express™ Gold 0.039"" (1.00mm) Black
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:&mpn=10146070-112Y1LF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Board Guide, GEN5, Locking Ramp, Pick and Place Cap, Solder Retention |
| Packaging | Tray |
| Gender | Female |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Surface Mount |
| Number of Positions | 98 |
| Pitch | 0.039"" (1.00mm) |
| Operating Temperature | -55°C ~ 105°C |
| Read Out | Dual |
| Contact Type | - |
| Card Type | PCI Express™ |
| Card Thickness | 0.062"" (1.57mm) |
| Flange Feature | - |
| Termination | Solder |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Material | Copper Alloy |
| Number of Positions/Bay/Row | - |
| Number of Rows | 2 |
