86092166314758E1LF

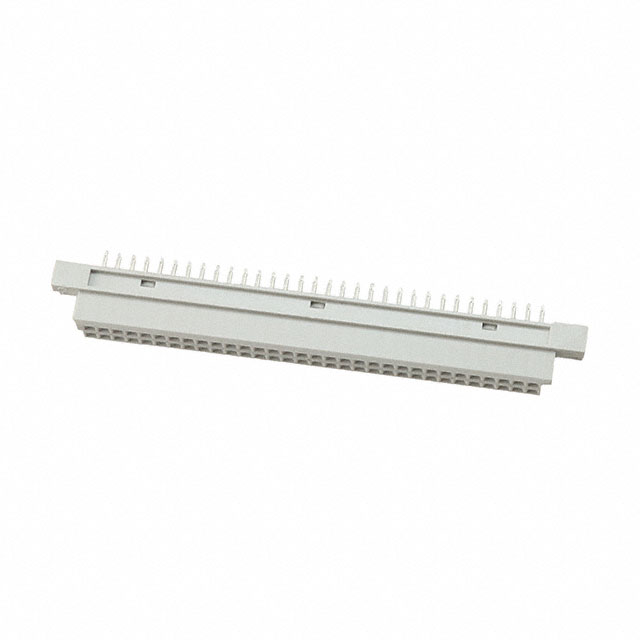

CONN DIN RCPT 16POS PCB RA GOLDManufacturer: Amphenol ICC (FCI)
Categories: DIN 41612
Quality Control: Learn More
Amphenol ICC (FCI) 8609 Series DIN 41612 connector, part number 86092166314758E1LF. This right-angle receptacle features 16 female sockets designed for PCB mounting via through-hole termination. The 0.200" (5.08mm) pitch and two-row configuration align with the B/2 (1/2 B) style of DIN 41612 connectors. The contact finish is gold, suitable for demanding applications requiring reliable electrical performance. This component is commonly utilized in industrial automation, telecommunications infrastructure, and defense electronics where robust and high-density interconnect solutions are critical. Packaged in a tray for efficient handling.
Additional Information
Series: 8609RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:&mpn=86092166314758E1LF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 16 |
| Pitch | 0.200"" (5.08mm) |
| Style | B/2 (1/2 B) |
| Number of Positions Loaded | All |
| Termination | Solder |
| Level, Class | 2 |
| Contact Finish Thickness | - |
| Number of Rows | 2 |
