LD37S24A4GV00LF
CONN D-SUB RCPT 37POS VERT SLDRManufacturer: Amphenol ICC (FCI)
Categories: D-Sub Connector Assemblies
Quality Control: Learn More

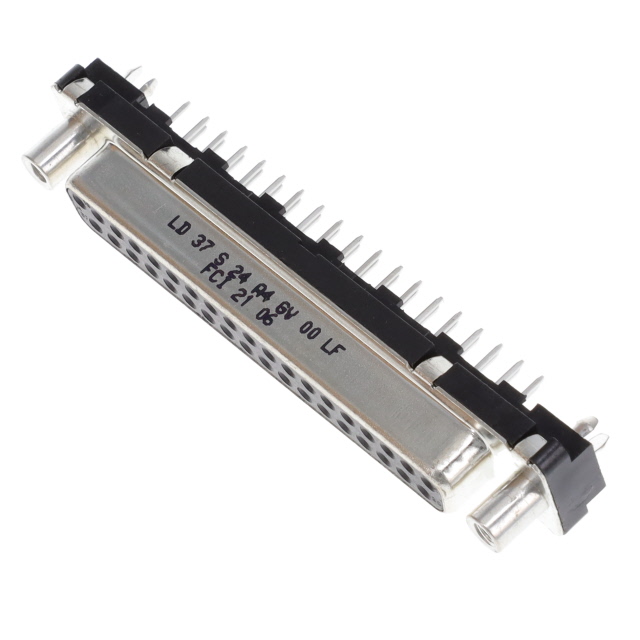

37 Position D-Sub Receptacle, Female Sockets Connector
Additional Information
Series: LDRoHS Status: Request inventory verificationManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:&mpn=LD37S24A4GV00LF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating (Amps) | 5A per Contact |
| Mounting Type | Through Hole |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Sub |
| Contact Finish Thickness | FLASH |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Tin-Nickel Plated |
| Shell Size, Connector Layout | 4 (DC, C) |
| Backset Spacing | - |
