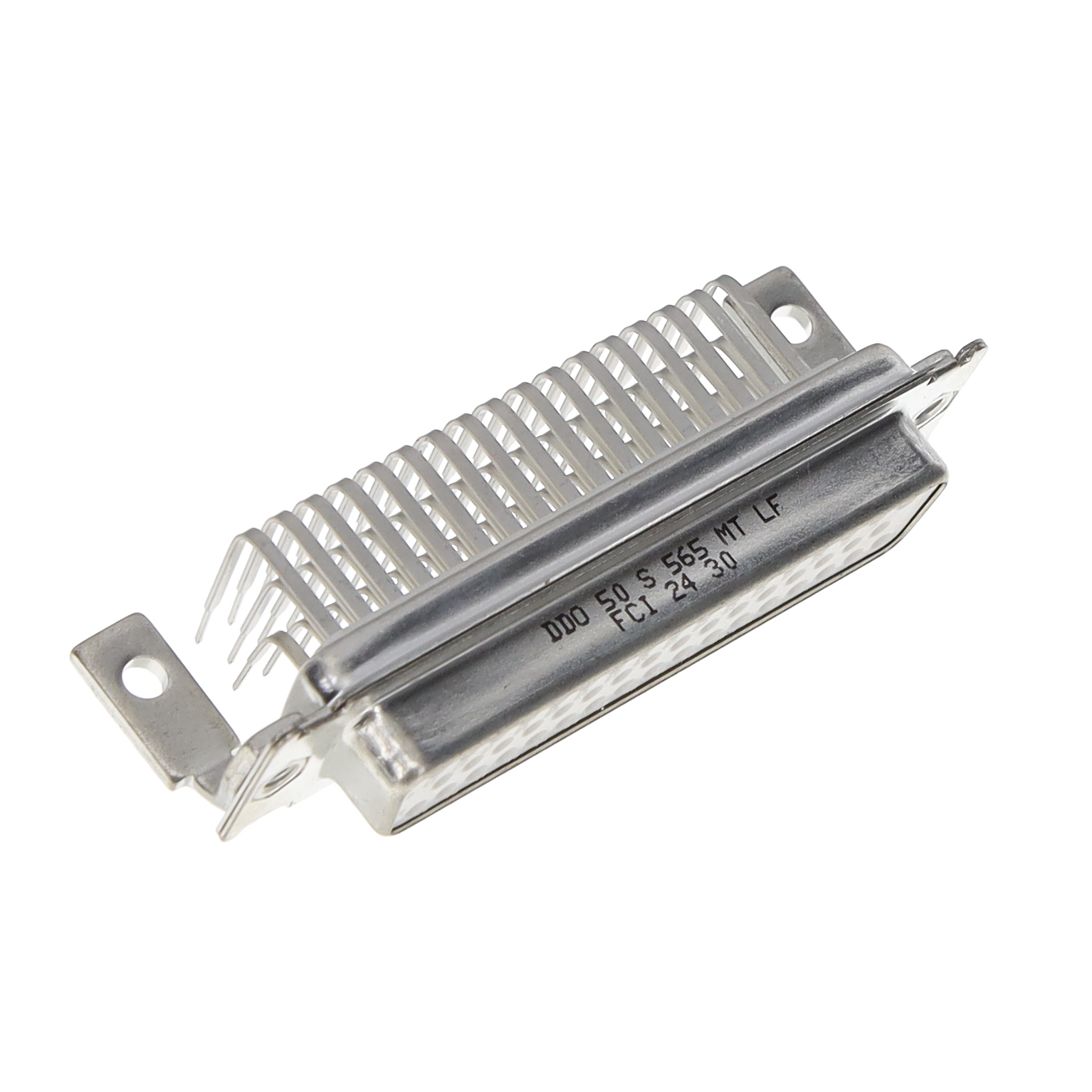

DDO50S565MTLF
CONN D-SUB RCPT 50POS R/A SLDRManufacturer: Amphenol ICC (FCI)
Categories: D-Sub Connector Assemblies
Quality Control: Learn More
50 Position D-Sub Receptacle, Female Sockets Connector
Additional Information
Series: DRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:&mpn=DDO50S565MTLF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Mounting Brackets |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold or Gold, GXT™ |
| Current Rating (Amps) | 5A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 50 |
| Number of Rows | 3 |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Sub |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Tin Plated |
| Shell Size, Connector Layout | 5 (DD, D) |
| Backset Spacing | 0.409"" (10.40mm) |
