DDM50S
CONN D-SUB RCPT 50P SLDR CUPManufacturer: Amphenol ICC (FCI)
Categories: D-Sub Connector Assemblies
Quality Control: Learn More

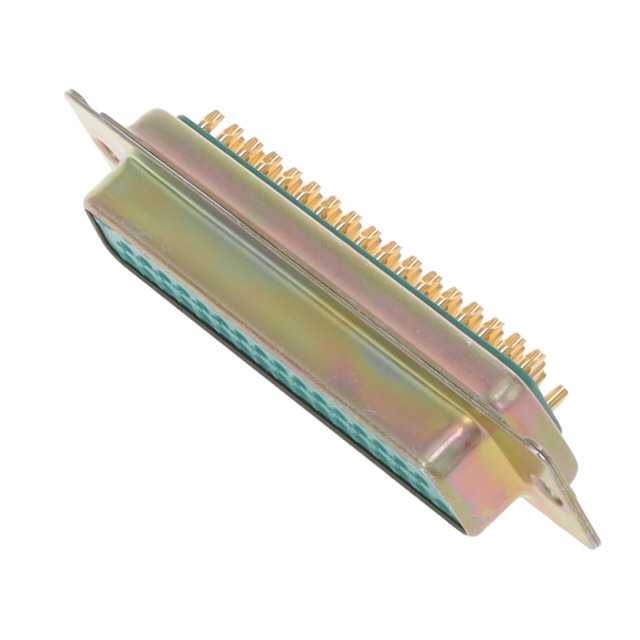

50 Position D-Sub Receptacle, Female Sockets Connector
Additional Information
Series: DM HE501RoHS Status: Request inventory verificationManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:&mpn=DDM50S&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating (Amps) | 7.5A per Contact |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 50 |
| Number of Rows | 3 |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder Cup |
| Ingress Protection | - |
| Connector Style | D-Sub |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Yellow Cadmium Plated |
| Shell Size, Connector Layout | 5 (DD, D) |
| Backset Spacing | - |
