D5W5P36A6GV08LF
CONN D-SUB PLUG 5POS R/A SLDRManufacturer: Amphenol ICC (FCI)
Categories: D-Sub Connector Assemblies
Quality Control: Learn More

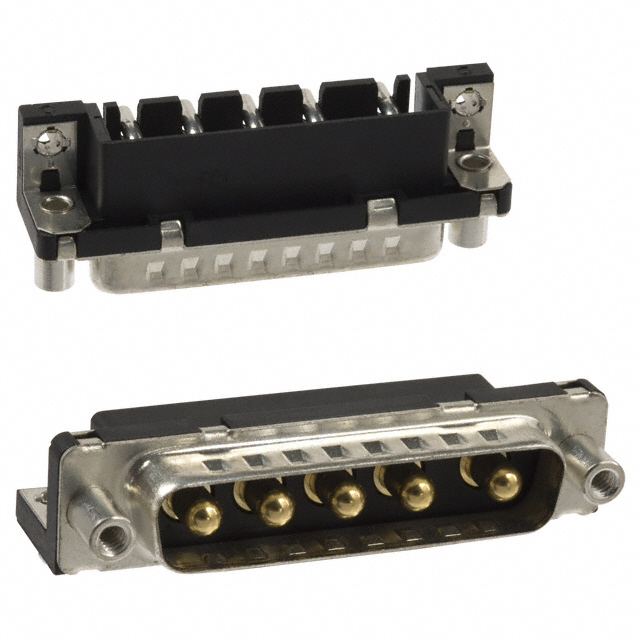

5 (Power) Position D-Sub, Combo Plug, Male Pins Connector
Additional Information
Series: Delta DRoHS Status: Request inventory verificationManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:&mpn=D5W5P36A6GV08LF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Board Lock, Grounding Indents, Mounting Brackets |
| Packaging | Tray |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Current Rating (Amps) | 30A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 5 (Power) |
| Number of Rows | 1 |
| Contact Type | Power |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Sub, Combo |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Nickel Plated |
| Shell Size, Connector Layout | 3 (DB, B) - 5W5 |
| Backset Spacing | 0.374"" (9.50mm) |
Request a Quote
