D09S33E6GX12LF
CONN D-SUB RCPT 9POS R/A SLDRManufacturer: Amphenol ICC (FCI)
Categories: D-Sub Connector Assemblies
Quality Control: Learn More

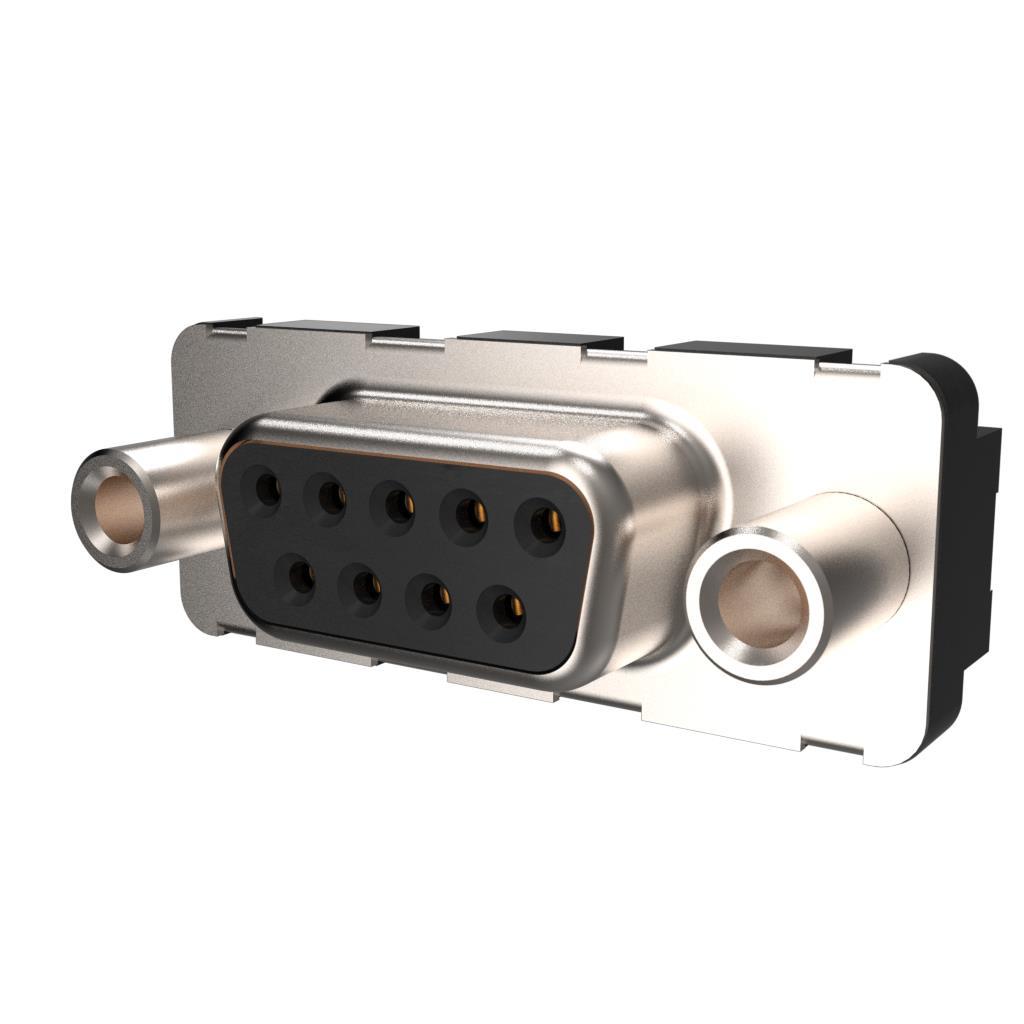

9 Position D-Sub Receptacle, Female Sockets Connector
Additional Information
Series: Delta DRoHS Status: Request inventory verificationManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&mpn=D09S33E6GX12LF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Board Lock, Mounting Brackets |
| Packaging | Tape & Reel (TR) |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating (Amps) | 5A per Contact |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Sub |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Tin-Nickel Plated |
| Shell Size, Connector Layout | 1 (DE, E) |
| Backset Spacing | 0.318"" (8.08mm) |
