10090926-P444VLF
CONN D-SUB HD PLUG 44P R/A SLDRManufacturer: Amphenol ICC (FCI)
Categories: D-Sub Connector Assemblies
Quality Control: Learn More

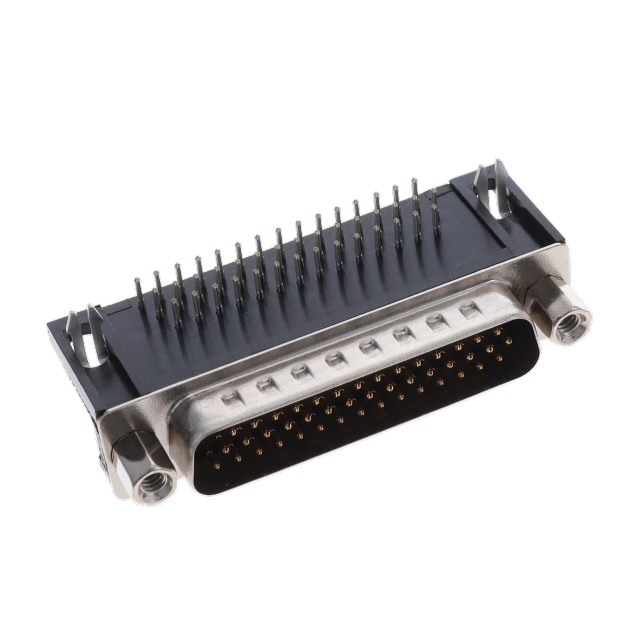

44 Position D-Sub, High Density Plug, Male Pins Connector
Additional Information
Series: 10090926RoHS Status: Request inventory verificationManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:&mpn=10090926-P444VLF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Board Lock, Grounding Indents, Mounting Brackets |
| Packaging | Tray |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Current Rating (Amps) | 2.5A per Contact |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 44 |
| Number of Rows | 3 |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Sub, High Density |
| Contact Finish Thickness | FLASH |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Nickel Plated |
| Shell Size, Connector Layout | 3 (DB, B) High Density |
| Backset Spacing | 0.350"" (8.89mm) |
Request a Quote
