10090099-S254VLF
CONN D-SUB RCPT 25POS R/A SLDRManufacturer: Amphenol ICC (FCI)
Categories: D-Sub Connector Assemblies
Quality Control: Learn More

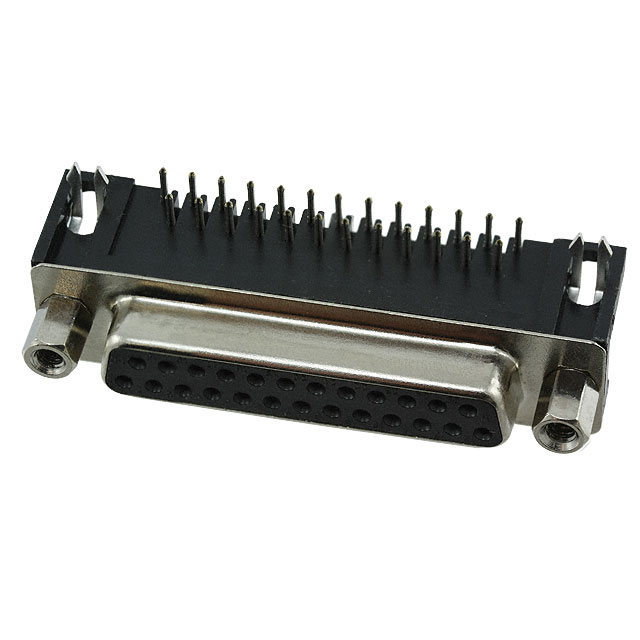

Amphenol ICC (FCI) 10090099-S254VLF is a 25-position D-Sub receptacle featuring female sockets. This right-angle, through-hole mounted connector, part of the 10090099 series, offers a robust solution for signal connectivity. It boasts gold contact finish with a FLASH thickness for reliable performance and a 5A per contact current rating. The connector includes essential features such as board locks and mounting brackets, with a mating side flange equipped with female screwlocks (4-40). Constructed with tin-nickel plated steel shells and rated UL94 V-0 for material flammability, this connector is suitable for applications in industrial automation, telecommunications, and computing. The shell size and connector layout correspond to the DB, B standard (Shell size 3).
Additional Information
Series: 10090099RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:&mpn=10090099-S254VLF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Board Lock, Mounting Brackets |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating (Amps) | 5A per Contact |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Sub |
| Contact Finish Thickness | FLASH |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Tin-Nickel Plated |
| Shell Size, Connector Layout | 3 (DB, B) |
| Backset Spacing | 0.318"" (8.08mm) |
