10090098-S094LLF
DSUB STR 9POS SOCKETManufacturer: Amphenol ICC (FCI)
Categories: D-Sub Connector Assemblies
Quality Control: Learn More

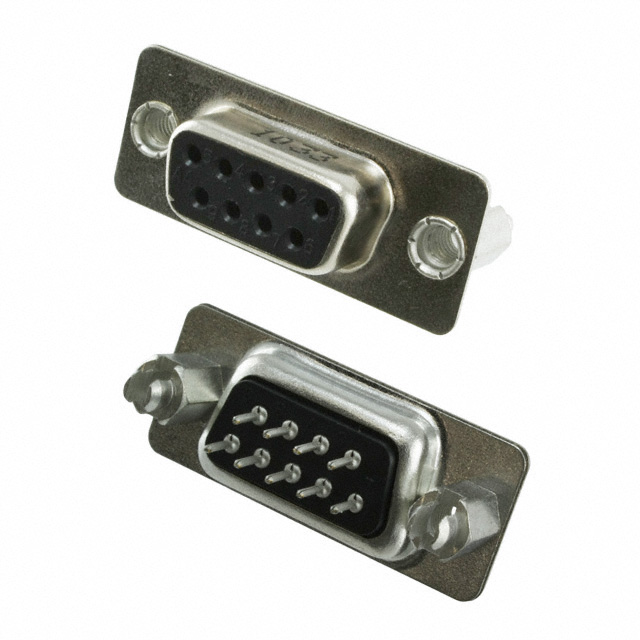

Amphenol ICC (FCI) 10090098-S094LLF is a 9-position D-Sub receptacle featuring female sockets. This DE (E) size connector, part of the 10090098 series, utilizes through-hole mounting and has a two-row contact arrangement. The signal contacts are gold plated with a flash thickness and rated for 5A per contact. The connector housing is constructed from tin-nickel plated steel, and the receptacle includes board lock features for secure PCB mounting. Termination is via solder. This component is suitable for applications in industrial automation, telecommunications, and consumer electronics where reliable signal connectivity is critical. It is supplied in bulk packaging.
Additional Information
Series: 10090098RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:&mpn=10090098-S094LLF&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Board Lock |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating (Amps) | 5A per Contact |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Board Side (M3) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Sub |
| Contact Finish Thickness | FLASH |
| Material Flammability Rating | - |
| Shell Material, Finish | Steel, Tin-Nickel Plated |
| Shell Size, Connector Layout | 1 (DE, E) |
| Backset Spacing | - |
