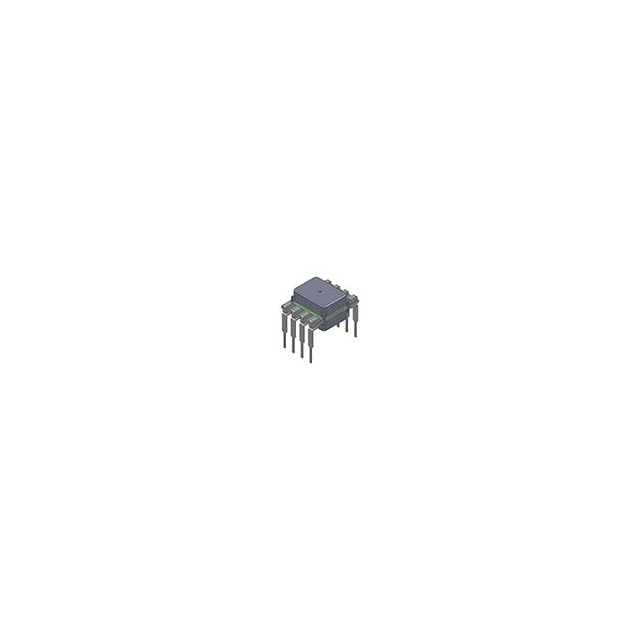

ELVH-015D-HRRD-I-N2A4
SENSOR 14.94PSID 0.06"" 14BIT DIPManufacturer: Amphenol All Sensors Corporation
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor -1.45PSI ~ 14.94PSI (-10kPa ~ 103kPa) Differential Male - 0.06"" (1.6mm) Tube, Dual 14 b 8-DIP (0.504"", 12.80mm), Dual Ports, Same Side
Additional Information
Series: ELVRoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 8-DIP (0.504"", 12.80mm), Dual Ports, Same Side |
| Output Type | I2C |
| Mounting Type | Through Hole |
| Output | 14 b |
| Operating Pressure | -1.45PSI ~ 14.94PSI (-10kPa ~ 103kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 2.7V ~ 5.5V |
| Port Size | Male - 0.06"" (1.6mm) Tube, Dual |
| Supplier Device Package | 8-DIP |
| Port Style | Barbed |
| Maximum Pressure | 30.02PSI (207kPa) |
