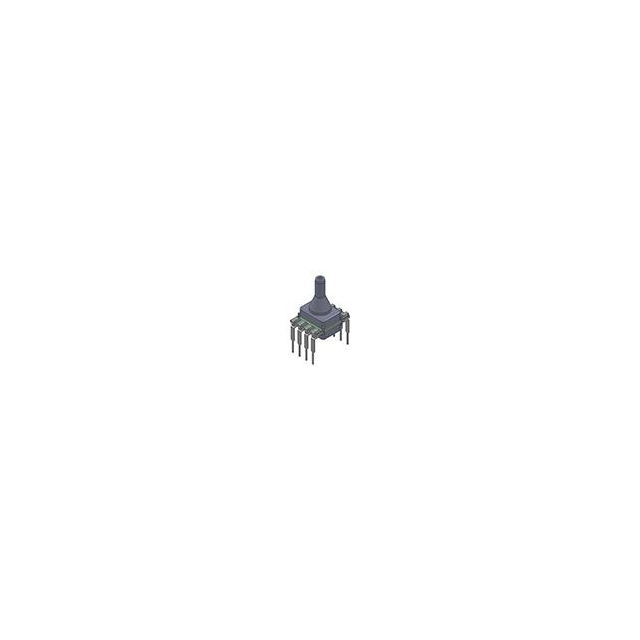

ELVH-015A-HNNJ-I-N5A4
SENSOR 14.94PSIA 14BITManufacturer: Amphenol All Sensors Corporation
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 15PSI (103.42kPa) Absolute 14 b 8-SMD, J-Lead
Additional Information
Series: ELVRoHS Status: Request inventory verificationManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 8-SMD, J-Lead |
| Output Type | I2C |
| Mounting Type | Surface Mount |
| Output | 14 b |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | J Lead |
| Voltage - Supply | 2.7V ~ 5.5V |
| Port Size | - |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 14.94PSI (103kPa) |
