DLVR-L10D-E1NS-C-NI5F
SENSOR 0.36PSID 0.08"" 14BIT 4SIPManufacturer: Amphenol All Sensors Corporation
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor ±0.36PSI (±2.49kPa) Differential Male - 0.08"" (2.03mm) Tube, Dual 14 b 4-SIP Module
Additional Information
Series: DLVRRoHS Status: Request inventory verificationManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tube |
| Package / Case | 4-SIP Module |
| Output Type | I2C |
| Mounting Type | Through Hole |
| Output | 14 b |
| Operating Pressure | ±0.36PSI (±2.49kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.75% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 5V |
| Port Size | Male - 0.08"" (2.03mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | 4-SIP |
| Port Style | Barbless |
| Maximum Pressure | ±7.23PSI (±49.83kPa) |
Request a Quote
Clients Also Buy

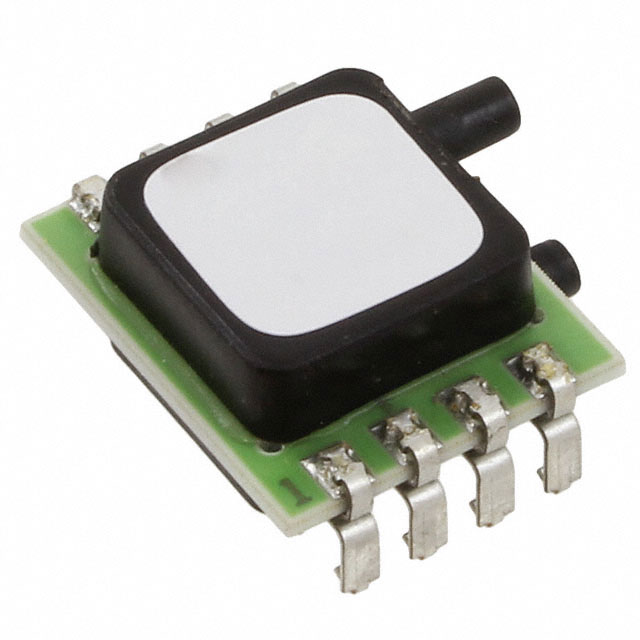

DLVR-L01D-E1NJ-C-NI3F
SENSOR 0.04PSID 0.08"" 14BIT 8SMD
DLVR-L01D-E1NJ-C-NI5F
SENSOR 0.04PSID 0.08"" 14BIT 8SMD

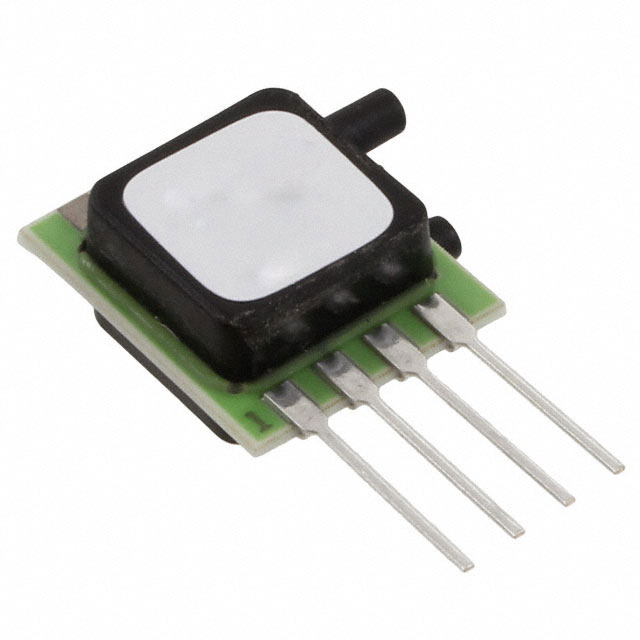

DLVR-L01D-E1NS-C-NI3F
