DLH-L10G-E1BD-C-NAV8
SENSOR 0.36PSID 0.09"" 16BIT 8DIPManufacturer: Amphenol All Sensors Corporation
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor ±0.36PSI (±2.5kPa) Differential/Vented Gauge Male - 0.09"" (2.24mm) Tube, Dual 16b 8-DIP (0.620"", 15.75mm), Dual Ports, Same Side
Additional Information
Series: DLHRoHS Status: Request inventory verificationManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP (0.620"", 15.75mm), Dual Ports, Same Side |
| Output Type | I2C, SPI |
| Mounting Type | Through Hole |
| Output | 16B |
| Operating Pressure | ±0.36PSI (±2.5kPa) |
| Pressure Type | Differential/Vented Gauge |
| Accuracy | ±1.5% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.68V ~ 3.6V |
| Port Size | Male - 0.09"" (2.24mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | 8-DIP |
| Port Style | Barbed |
| Maximum Pressure | 7.23PSI (49.83kPa) |
Request a Quote
Clients Also Buy

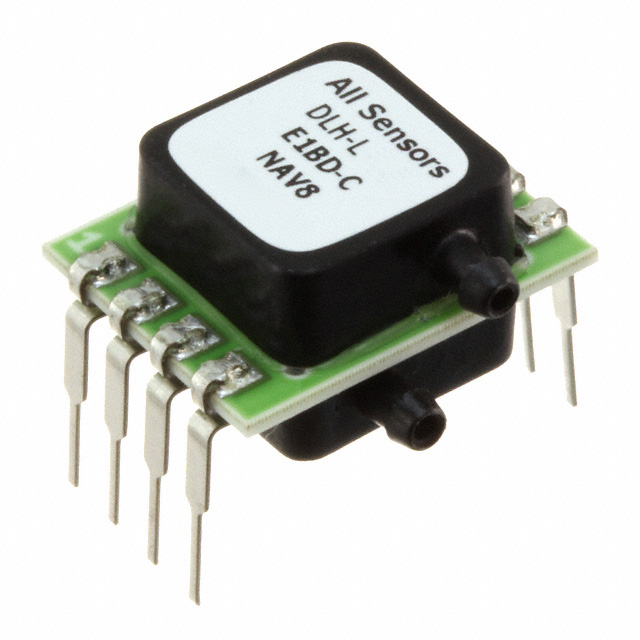

DLH-L05D-E1BD-C-NAV8
