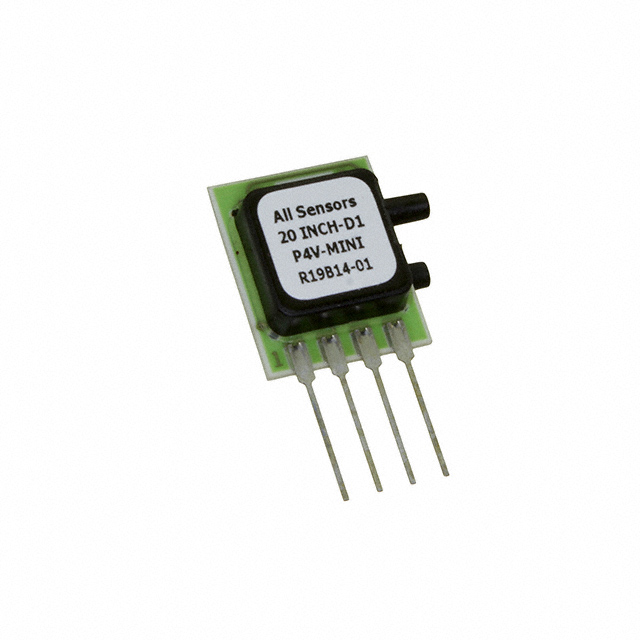

20 INCH-D1-P4V-MINI
SENSOR 0.72PSID 0.08"" 4.25VManufacturer: Amphenol All Sensors Corporation
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor ±0.72PSI (±4.96kPa) Differential Male - 0.08"" (2.03mm) Tube, Dual 0.25 V ~ 4.25 V 4-SIP Module
Additional Information
Series: MAMPRoHS Status: Request inventory verificationManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.25 V ~ 4.25 V |
| Operating Pressure | ±0.72PSI (±4.96kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.5V ~ 5.5V |
| Port Size | Male - 0.08"" (2.03mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | ±10.84PSI (±74.75kPa) |
