2 INCH-D1-MV-MINI
SENSOR 0.07PSID 0.08"" .01VManufacturer: Amphenol All Sensors Corporation
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 0.07PSI (0.5kPa) Differential Male - 0.08"" (2.03mm) Tube, Dual 0 mV ~ 10 mV (12V) 4-SIP Module
Additional Information
Series: MDCXRoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 10 mV (12V) |
| Operating Pressure | 0.07PSI (0.5kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 16V |
| Port Size | Male - 0.08"" (2.03mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | - |
Request a Quote
Clients Also Buy

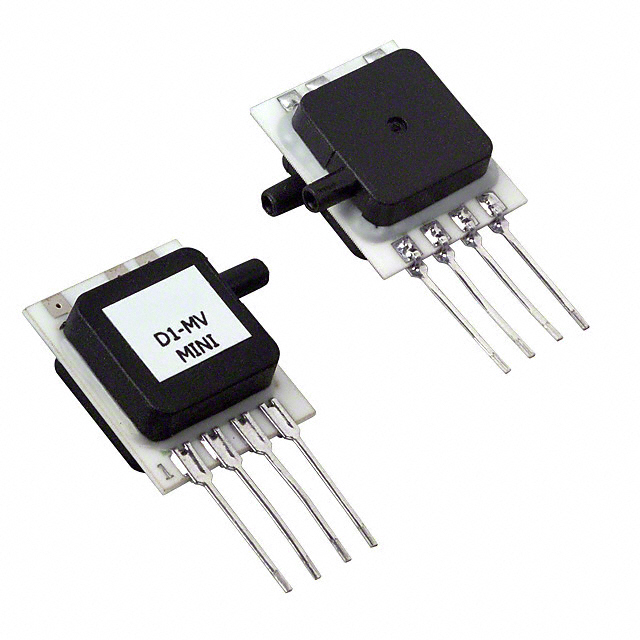

10 INCH-D1-MV-MINI
SENSOR 0.36PSID 0.08"" .02V

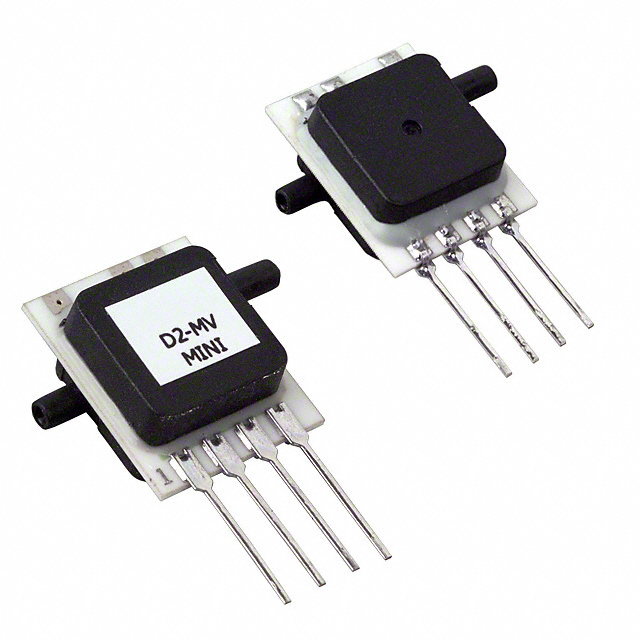

10 INCH-D2-MV-MINI
SENSOR 0.36PSID 0.08"" .02V

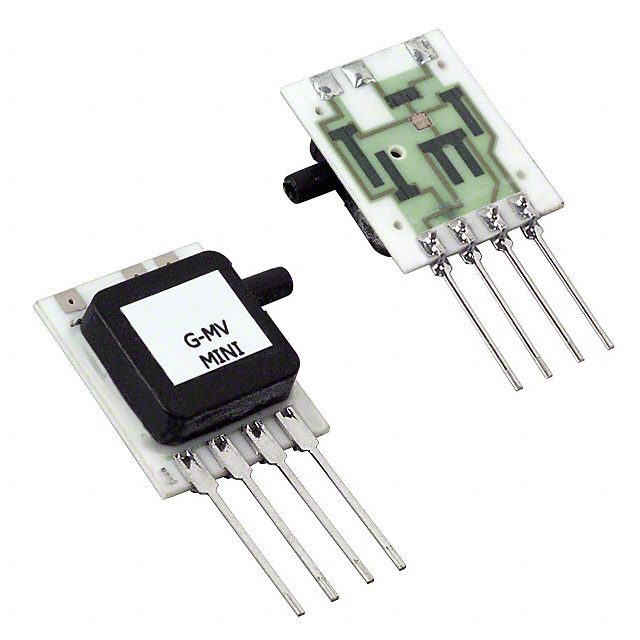

10 INCH-G-MV-MINI
