15 PSI-G-4V-PRIME-REF
SENSOR 15PSIG 0.19"" 4.25VManufacturer: Amphenol All Sensors Corporation
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Amphenol All Sensors Corporation 15-PSI-G-4V-PRIME-REF is a vented gauge pressure sensor with an operating pressure range of 15PSI (103.42kPa). This analog voltage output device provides a 0.25V to 4.25V signal. It features temperature compensation and an amplified output, with an accuracy of ±0.25%. The sensor is designed for board mounting with a through-hole termination style and a male, barbless tube port measuring 0.19" (4.83mm). The supply voltage range is 5.5V to 16V, and it operates within an industrial temperature range of -40°C to 125°C. This component is suitable for applications in industrial automation and medical equipment.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.25 V ~ 4.25 V |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | 5.5V ~ 16V |
| Port Size | Male - 0.19"" (4.83mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 45PSI (310.26kPa) |
Request a Quote
Clients Also Buy

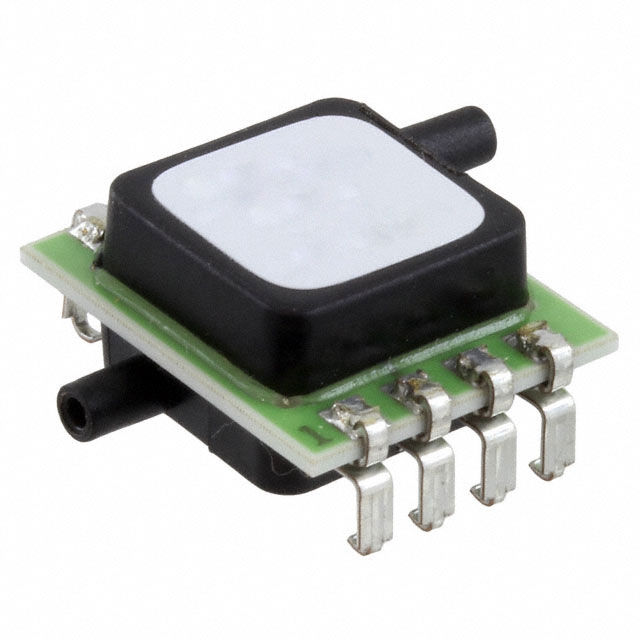

DLVR-L10D-E2NJ-C-NI3F
